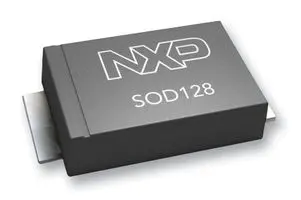

NXP PMEG6030EVP diode

Start your project from this example.

Our catalogue draws on past supply projects to show our experience and provide starting points for new OEM enquiries. Share the reference model or SKU, quantity, destination and customisation brief. Final specifications, scope of supply, MOQ, samples and lead time are confirmed in your quotation.

Shown specifications are reference configurations. Customisation depends on product capability and project requirements. Branded components retain the manufacturer’s part-number specifications.

Military or police end use?

Disclose it before enquiry. Official end-user and end-use documents are required for review and any applicable Chinese export-licence application. If you cannot provide them, please do not submit a military or police supply enquiry.

Read the documentation requirements →

Features and benefits

Average forward current: I_F(AV) ≤ 3 A
Reverse voltage: V_R ≤ 60 V
Low forward voltage
High power capability due to clip-bonding technology
Small and flat lead SMD plastic package
High temperature T_j ≤ 175 °C
Suitable for both reflow and wave soldering
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption application

Parametrics

Type number	Package version	Package name	Size (mm)	V_R [max] (V)	I_F [max] (A)	Nr of functions	Configuration	I_R [max] (µA)	C_d [max] (pF)
PMEG6030EVP-Q	SOD128	CFP5	3.8 x 2.5 x 1	60.0	3.0	single	single	300000.0	575.0

Package

Type number	Orderable part number, (Ordering code (12NC))	Status	Marking	Package	Package information	Reflow-/Wave soldering	Packing
PMEG6030EVP-Q	PMEG6030EVP-QX (934662858115)	Active	DB	CFP5 (SOD128)	SOD128	REFLOW_BG-BD-1 WAVE_BG-BD-1	SOD128_115

Environmental information

Type number	Orderable part number	Chemical content	RoHS	RHF-indicator
PMEG6030EVP-Q	PMEG6030EVP-QX	PMEG6030EVP-Q
