Open ST1W008S4AR1500.pdf (PDF)

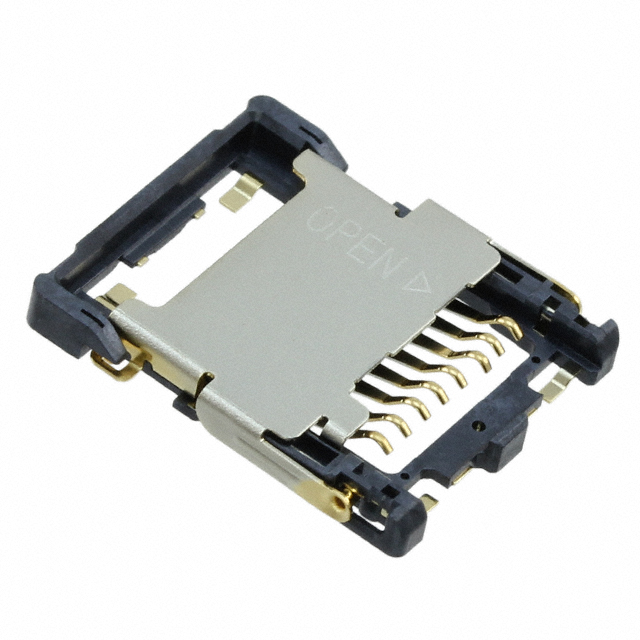

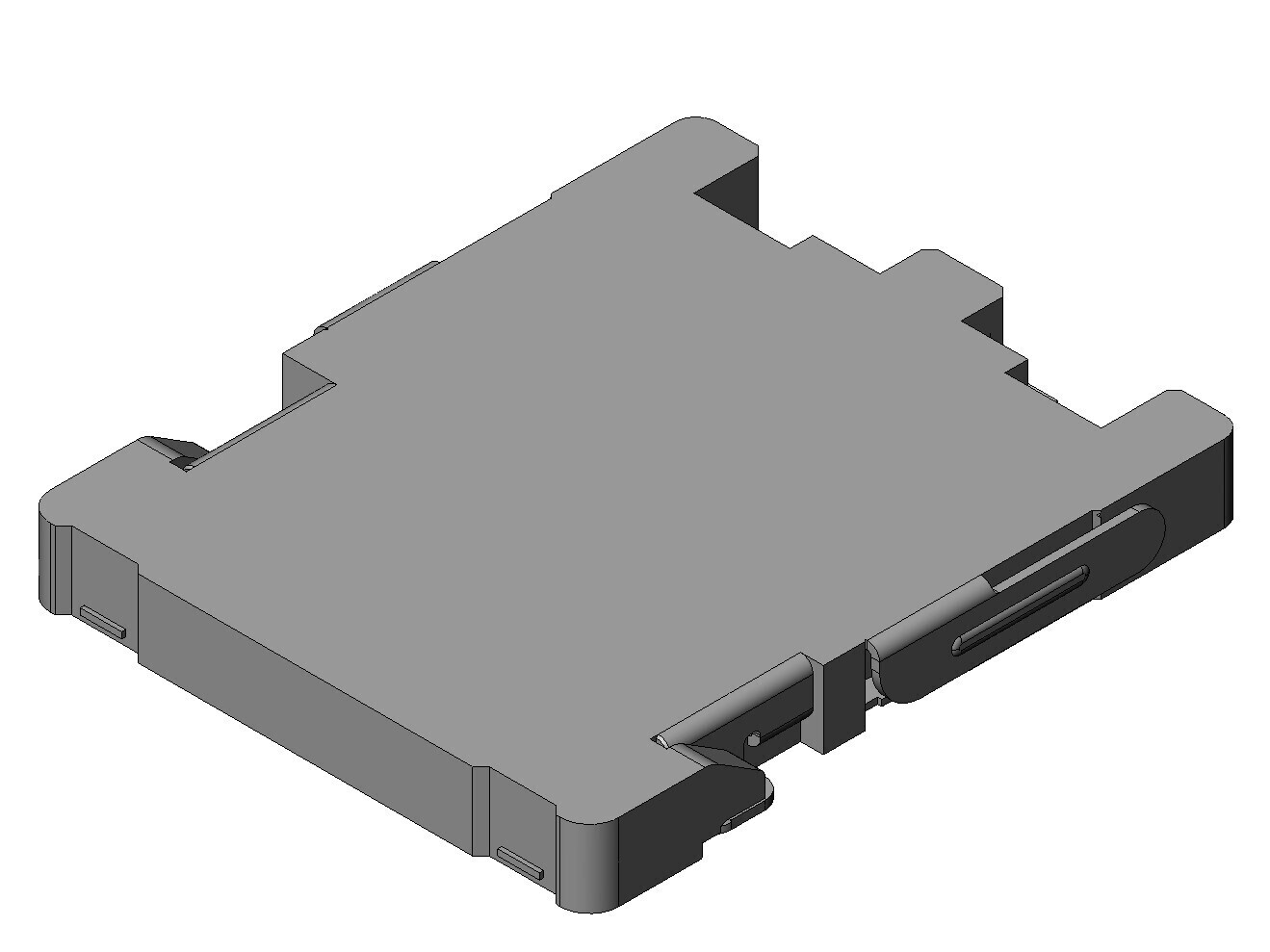

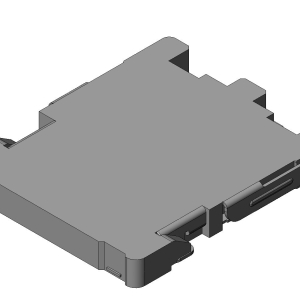

| Part Number | ST1W008S4AR1500 |
|---|---|
| Status | Active |
| Number of Positions | 8 pos. |
| Connector Type | Hinge type |
| Card Detection Switch | None |
| PCB Mounting Style | Soldering (SMT) |
| PCB Mounted Height (mm) | 1.9 |
| Body Length (mm) | 16.3 |
| Body Breadth (mm) | 13.6 |
| Material of Contact | Copper alloy |
| Finish of Contact in Connecting Area | Gold plating over Nickel |
| Finish of Contact in Terminal Area | Gold flash plating over Nickel |
| Material of Housing | Synthetic resin (UL94V-0) |
| Material of Cover | Stainless steel |
| Rated Current (A) | 0.5 |
| Rated Voltage (V) | 10 |
| Contact Resistance (milliohm max.) | 100 |
| Insulation Resistance (megaohm min.) | 1000 |
| Dielectric Withstanding Voltage (V 1minute) | AC 500 |
| Operating Temperature Range (deg. C) | -25 to +85 |
| Mating Cycles (times) | 10,000 |
| Packaging Type | Embossed tape packaging |
| Quantity in The Standard Packaging (pieces) | 1,500 pieces/reel |
| RoHS compliant | 10 substances (2011/65/EU, (EU)2015/863) |
| REACH compliant | 240 substances (23/01/2024) |
| Remarks |
