Features

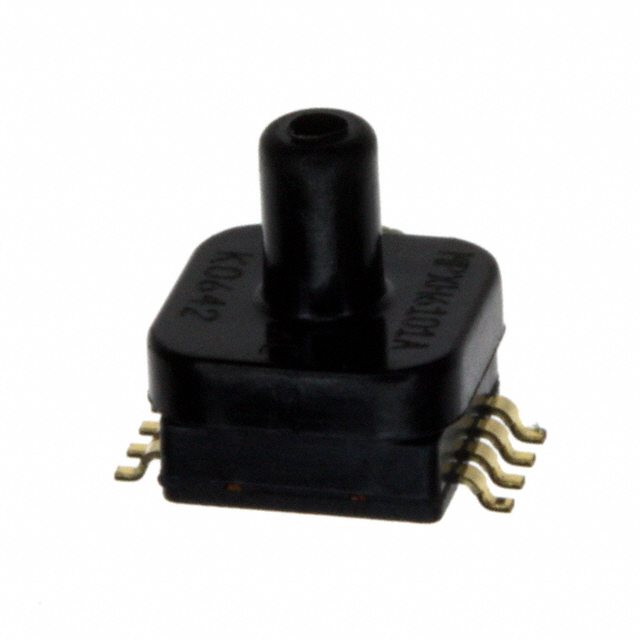

Pressure Sensor, 3V, 15/115kPa, SOP 8, Port
Package
SO8: SO8, plastic, small outline package; 8 terminals; 1.27 mm pitch; 8.26 mm x 8.26 mm x 4.8 mm body
Operating Features
| Parameter | Value |
|---|---|
Accuracy (% Error) (Max) (%) | 1.5 |
Ambient Operating Temperature (Min to Max) (℃) | -40 to 125 |
Level of Integration | integrated |
Output Type | analog |
Pressure Range Min-max (MIN-MAX) (kPa) | 15 – 115 |
| Parameter | Value |
|---|---|
Pressure Rating (MAX) (psi) | 17 |
Supply Voltage [min] (V) | 2.7 |
Supply Voltage [max] (V) | 3.3 |
Supply Voltage [typ] (V) | 3 |
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | RHF Indicator | 2nd Level Interconnect | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|---|---|
MP3H6115AC6T1(935319158128) | No | Yes | Yes |  | e4 | REACH SVHC | 508.2 |
Quality
| Part/12NC | Safe Assure Functional Safety | Peak Package Body Temperature (PPT) (C°) | Maximum Time at Peak Temperatures (s) | ||
|---|---|---|---|---|---|
| Lead Soldering | Lead Free Soldering | Lead Soldering | Lead Free Soldering | ||
MP3H6115AC6T1 (935319158128) | No | 250 | 250 | 30 | 30 |
