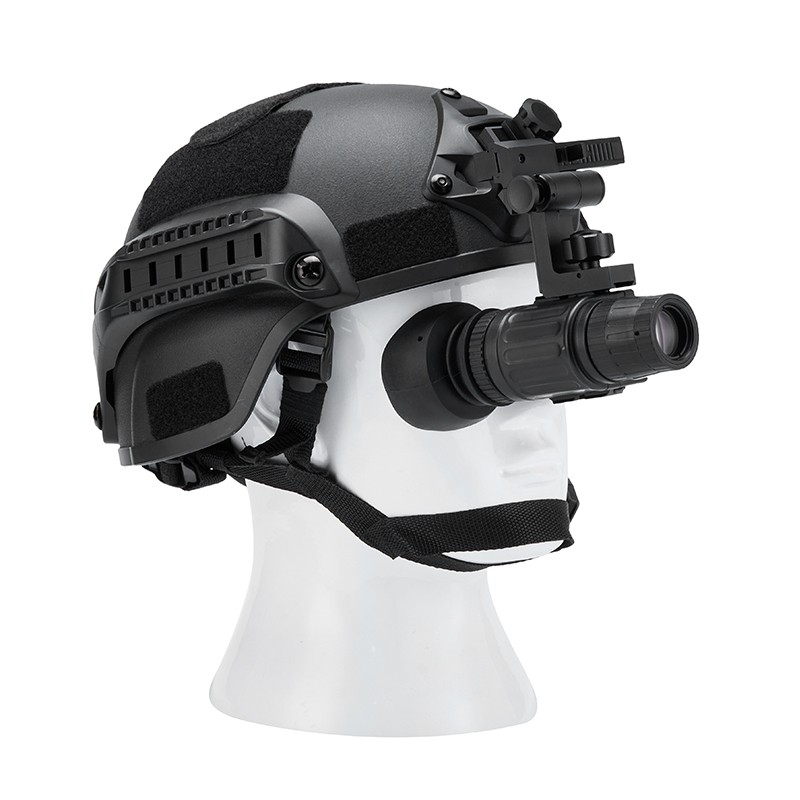

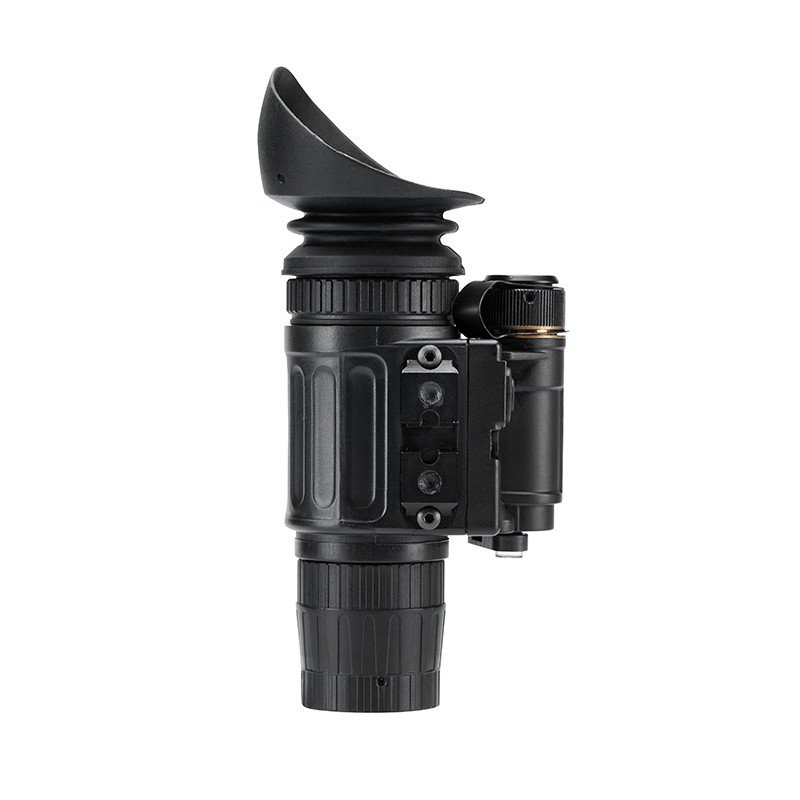

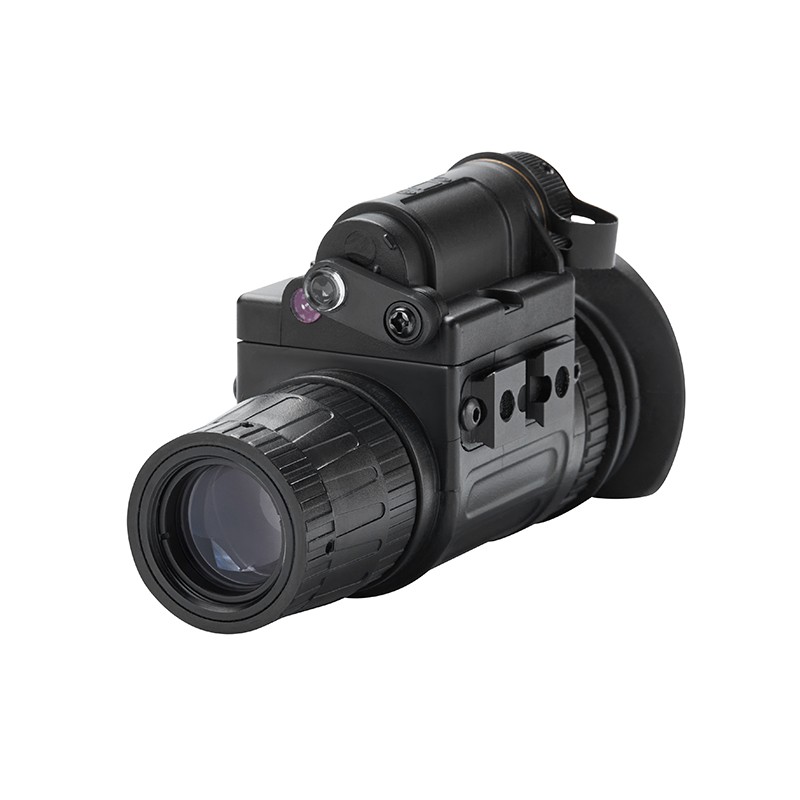

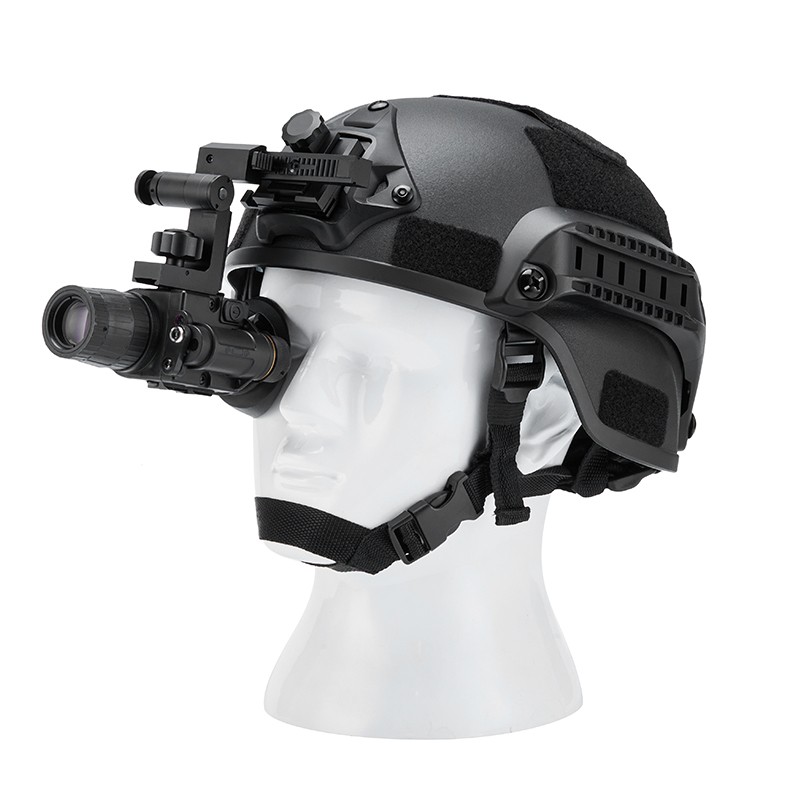

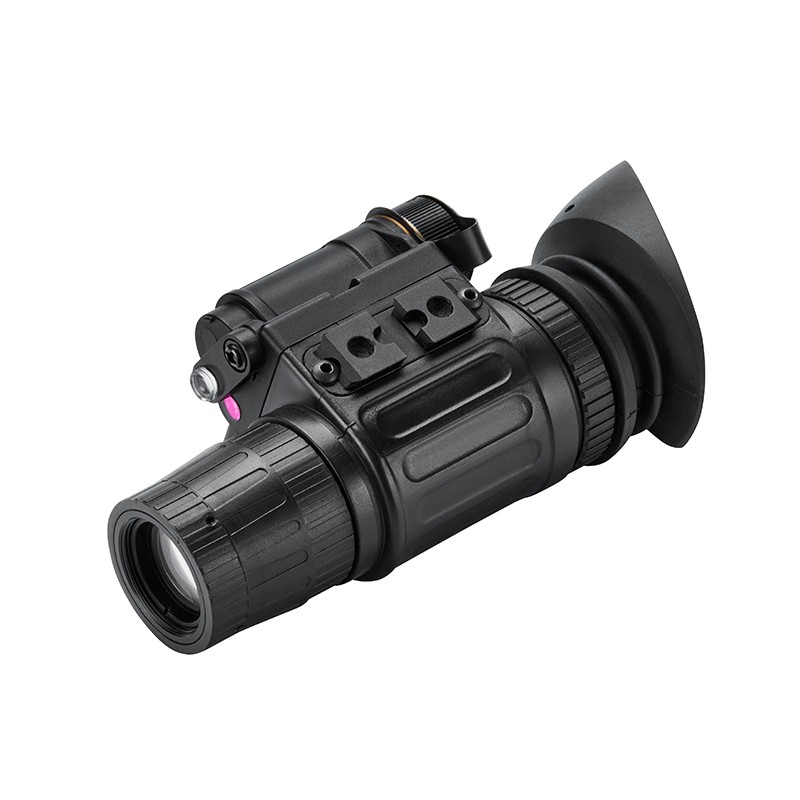

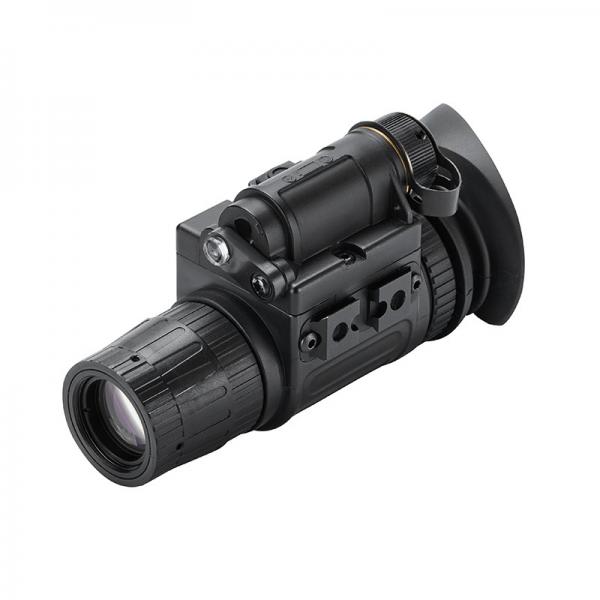

This night vision is headwear and night vision goggles. This Monocular Gen2+Night Vision Goggles is 1× magnification, with Intensifier tube level Gen 2+ or quasi Gen3, for military use.
MOQ=1000
Payment: TT/LC
Shipping Port: Guangzhou or any port in China
Lead Time: usually 15 working days
Product Dimensions: OEM weight
Color: OEM color or as pictures’ colors
★Waterproof and dustproof up to IP65 level
★Direction-sensing automatic switch: When the device is not needed temporarily, press a button on the helmet to lift the device up to the top position and then let go, and the device will automatically turn off. When you need to continue using it, press the same button to put the device down to the observation position, and the device will automatically resume working state.
★Replacing the objective lens can change the magnification, and 3x, 5x or 6x lenses are optional
★Optional separate infrared enhancer
★Standby zero consumption: When not used for a long time, the battery will not lose power when placed in the battery tube
★Battery cover spring embedded: It can better contact with the battery and the spring is not easy to be damaged, and it is also easier to twist the battery cover.
★The helmet can be freely adjusted: The helmet device can be freely adjusted according to the head size of different users.
★Multi-layer coating standard: The ultra-wideband multi-layer anti-reflection film can suppress the broadband reflection of the glass surface of the lens, reduce the loss of light, and allow more light to pass through the lens to obtain a good observation effect
★Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, which can ensure stable observation effect and protect eyesight.
★Low battery indication: When the battery is low, you can observe the green indicator light flashing at the edge of the green fluorescent screen through the eyepiece.
★Battery cover spring embedded
| Style | Monocular | Monocular |
| IIT | Gen2+ | Quasi Gen3 |
| Resolution (line pairs, lp/mm) | 60-64 | 64-72 |
| Quality factor (FOM value) | 1400-1800 | 1600-2300 |
| Sensitivity (µA/lm) | 700-1000 | 850-1200 |
| Signal-to-Noise Ratio | 23-28 | 28-32 |
| Brightness gain (cd/㎡/lx) | 8000-12000 | 10000-20000 |
| Cathode surface type | S25 | GaAs |
| Lens coating type | Ultra-broadband multi-layer anti-reflection coating | Ultra-broadband multi-layer anti-reflection coating |
| Magnification (X) | 1x | 1x |
| Field of view (degrees, °) | 40 | 40 |
| Focal length (mm) | 25 | 25 |
| Vision adjustment range (diopter) (degrees, °) | +5/-5 | +5/-5 |
| Objective lens adjustment range (meters, m) | 0.25–∞ | 0.25–∞ |
| Volume (mm) | 110 x 68 x 42 | 110 x 68 x 42 |
| Weight (g) | 311 | 311 |
| Supply voltage (volts, v) | 2.0-4.2 | 2.0-4.2 |
| Battery Type | 1X CR123ALithium | 1X CR123ALithium |
| Continuous working time (hours, h) | 100(NO IR)40(IR) | 100(NO IR)40(IR) |
| Anti-glare protection function | Yes | Yes |
| Direction sensing automatic switch function | Yes | Yes |
| Automatic brightness function | Yes | Yes |
| Battery cover spring embedded design | Yes | Yes |
| Infrared auxiliary light | Yes | Yes |
| Infrared auxiliary amplifier | Yes | Yes |
| Built-in infrared indicator light | Yes | Yes |
| Infrared light wavelength (nm) | 850 | 850 |
| Install long-distance independent infrared lamp | Yes | Yes |
| Operating Temperature Range (°C) | -50/+60 | -50/+60 |
| Storage temperature range (°C) | -50/+70 | -50/+70 |
| Relative humidity | 5%-98% | 5%-98% |
| Trouble-free time | 10000H | 10000H |
| Waterproof and dustproof level | IP65 | IP65 |
COMPANY ADVANTAGES:
Established in 2010 and located in Guangzhou, we, Partner(Guangdong) SCM Co., Ltd. design and manufacture highly innovative and professional equipment for the world’s law enforcement and armed forces as well as outdoor enthusiasts.
With hundreds of professional factories covering full series of tactical and outdoor products, we could offer professional and quick solutions for raw/semi-finished material, OEM/ODM finished products and production line machines.
Over the last 13 years, we have established successful business relationship between customers from over 60 countries and regions. We believe that we could establish long-term business relationship and achieve mutual benefit through sincere cooperation between our two parties.
1. 24 hours follow up to your inquiry
2. OEM/ODM are available & Free custom logo print & Both heat transfer printing and laser engraving can be choiced
3. Fast delivery both for sample and bulk & timely update production state at any time you need during mass production
4. Totally safe/green raw material in high quality bought from the most original source suppliers.
5. Multi-choice for packing accessories, also can be customized.
6. We carry out strict quality control management from raw material to finished product.
7. Air shipping, Sea shipping, truck/train shipping are available.
8. Professional After-sales Service.
9. We have tens of multiple function production lines to fullfill large quantity order, production ability around 6000 pcs/day.
10. Our factories own Hundreds of thousand square meters factory area, enough to meet lage-area warehousing.
11. Best factory wholesale price and spare the most profit for you to make your business easier & better in the market.
