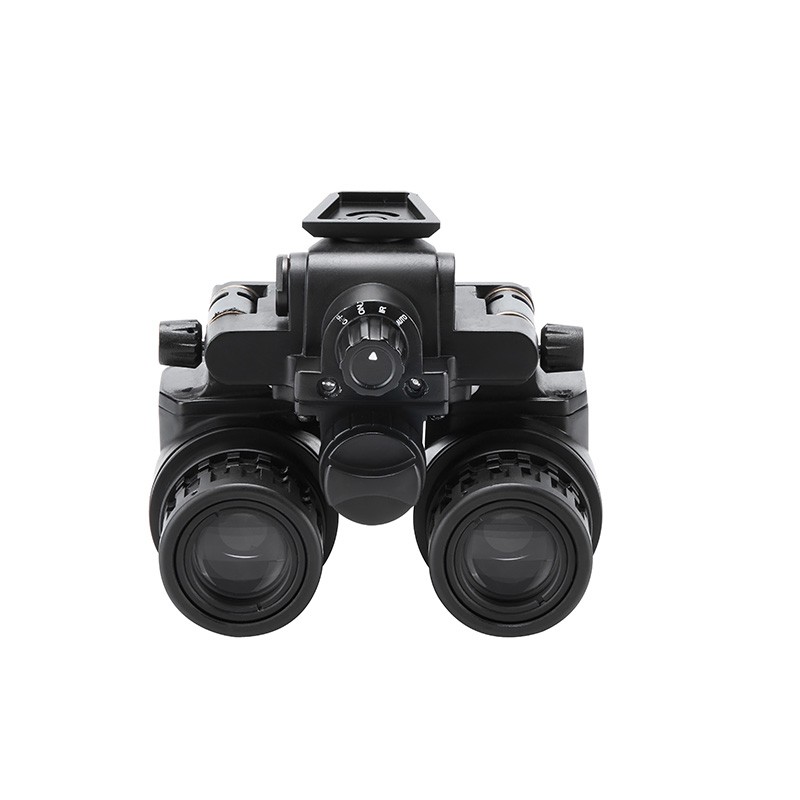

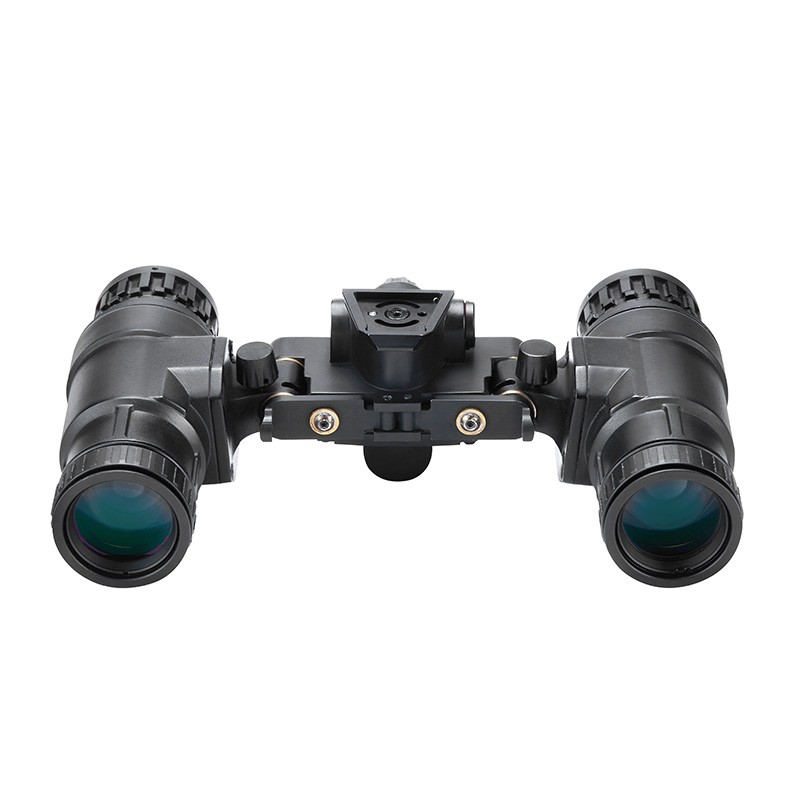

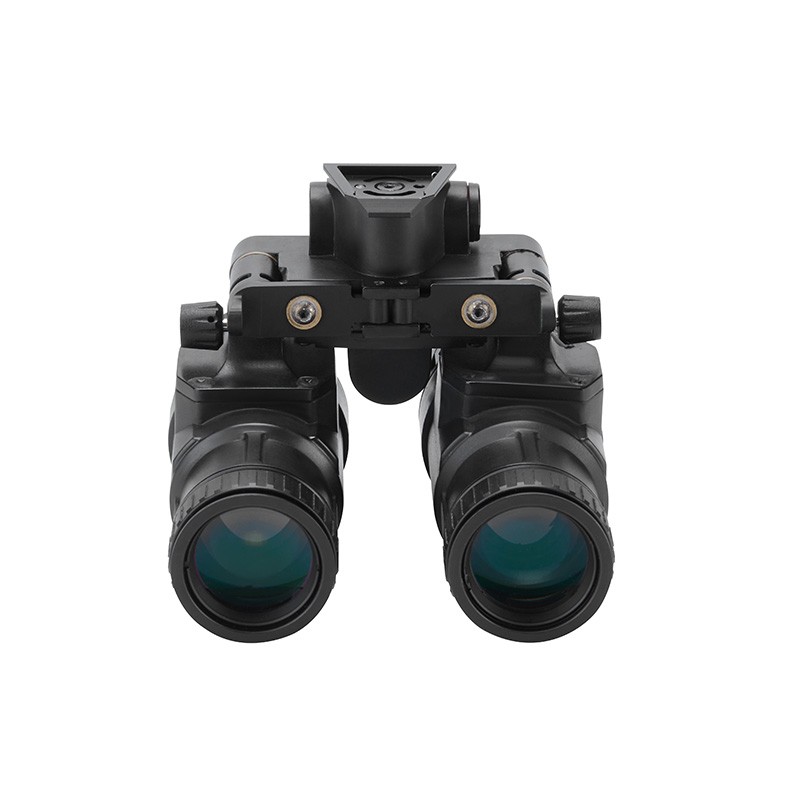

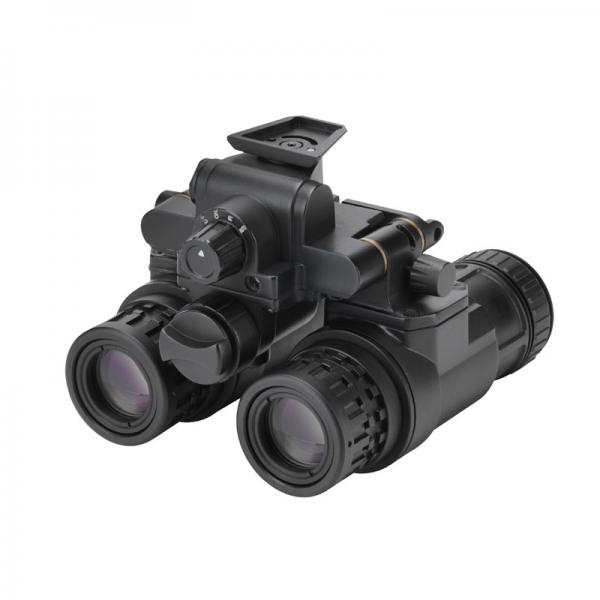

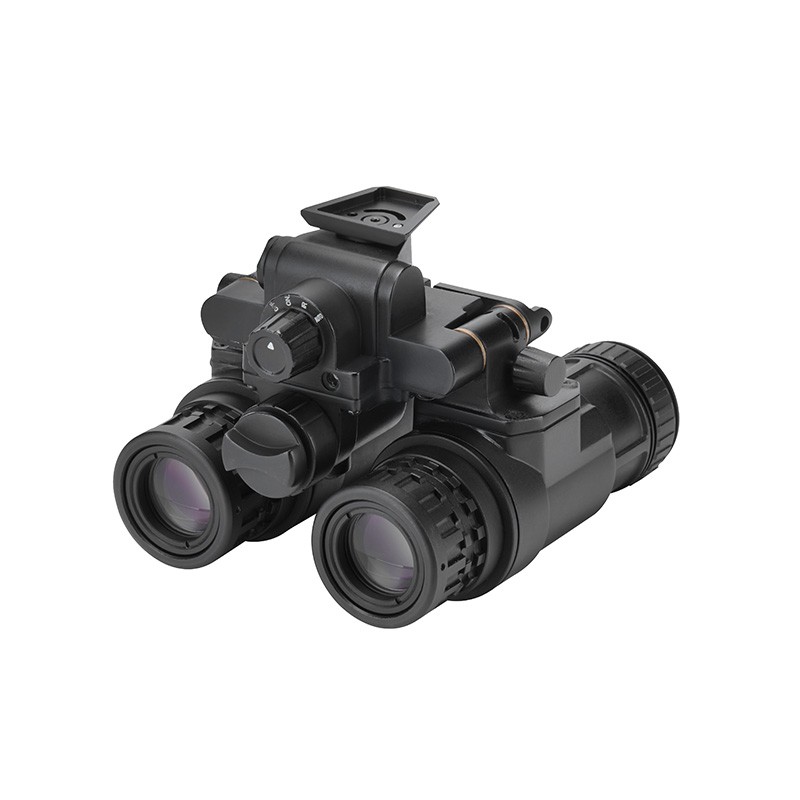

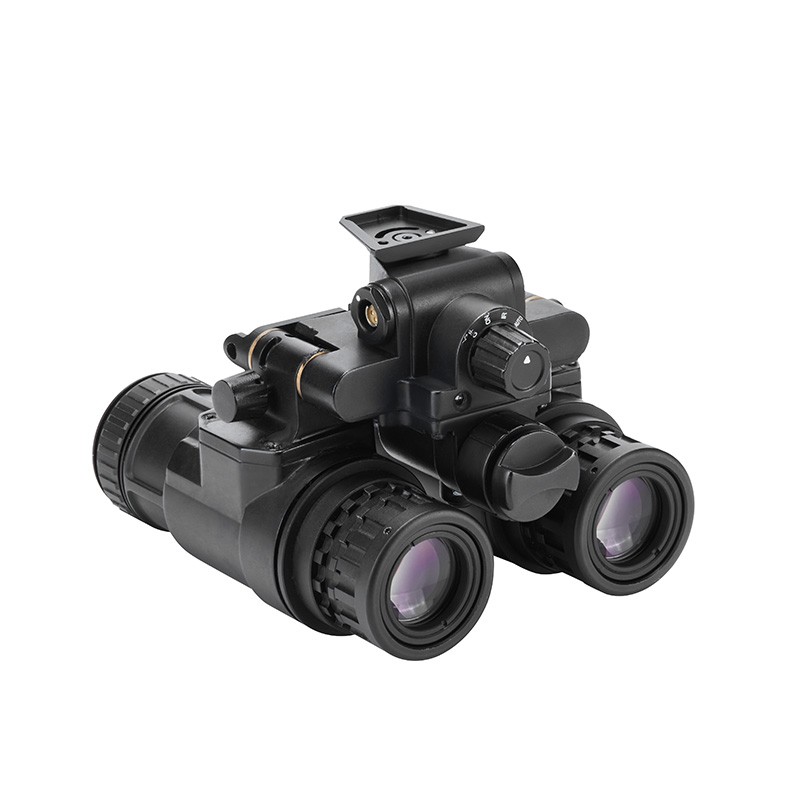

- Binocular Gen2+ IP67 Reversible Night Vision
This night vision is headwear and night vision goggles. This Binocular Gen2+Night Vision Goggles is 1× magnification, with Intensifier tube level Gen 2+ or quasi Gen3, for military use.
MOQ=1000
Payment: TT/LC
Shipping Port: Guangzhou or any port in China
Lead Time: usually 15 working days
Product Dimensions: OEM weight
Color: OEM color or as pictures’ colors
★The night vision device uses a high-performance 2nd generation + image intensifier, and can also be equipped with a higher-level quasi-3rd generation image intensifier, which is suitable for different budgets and mission requirements.
★Multi-layer broadband coating: The ultra-wideband multi-layer anti-reflection film can suppress broadband reflection on the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain a good observation effect.
★Quick switching of single-eye and double-eye viewing modes: The single-side lens barrel can be independently flipped up and down 140°, realizing fast switching of single-eye and double-eye viewing modes, and has an automatic shutdown function when the single-side lens barrel is flipped up to 45°.
★High light automatic power-off protection function: During the observation process, when the environmental detector detects that the ambient light intensity exceeds 40 LUX, the power of the device will automatically turn off within 10S, thereby preventing damage to the image intensifier and protecting the instrument.
★Direction sensing automatic switch: When the entire instrument is flipped up 90-120 degrees, it will automatically shut down; when it is flipped down for viewing, it will automatically turn on.
★Optional front infrared thermal imaging enhancement pendant. The use of night vision goggles in low light and low illumination environments will be limited. At this time, install infrared thermal imaging enhancement pendants to achieve rapid upgrades of equipment, improve users’ night perception capabilities, and ensure priority identification of potential targets.
★ Connect the external battery box through the power cord to meet long-term viewing needs.
★ Eye distance locking function: The eye distance can be adjusted continuously within the range of 50-80mm, and the eye distance can be manually locked.
★ Can be upgraded to IP67 waterproof and dustproof level to ensure normal use in extremely harsh environments.

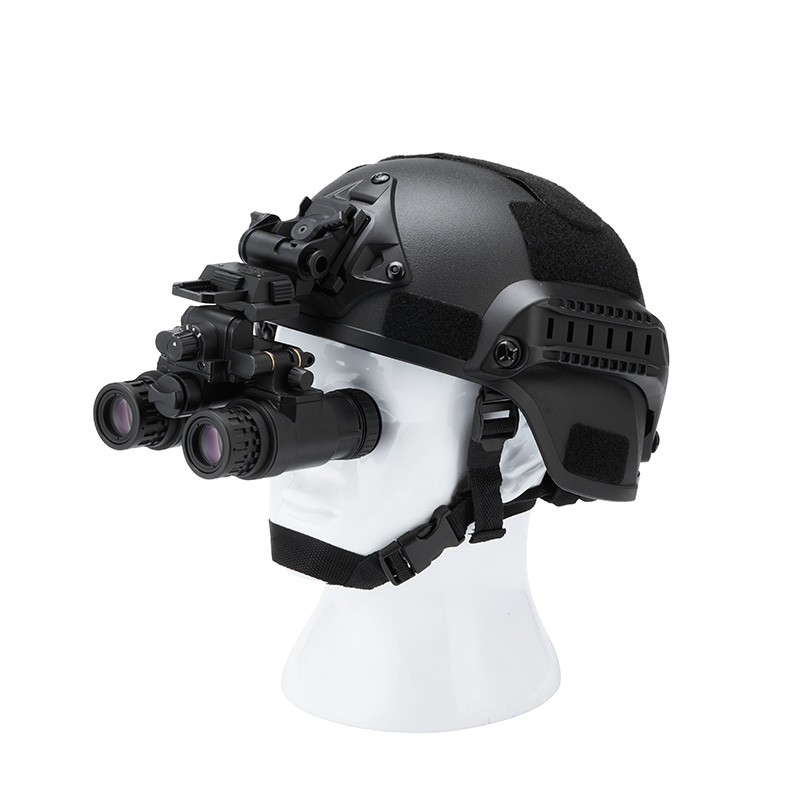

★ Flexible usage, it can be used with a helmet or handheld for observation.
| Style | Binocular | Binocular |
| IIT | Gen2+ | Quasi Gen3 |
| Resolution (line pairs, lp/mm) | 60-64 | 64-72 |
| Quality factor (FOM value) | 1400-1800 | 1600-2300 |
| Sensitivity (µA/lm) | 700-1000 | 850-1200 |
| Signal-to-Noise Ratio | 23-28 | 28-32 |
| Brightness gain (cd/㎡/lx) | 8000-12000 | 10000-20000 |
| Cathode surface type | S25 | GaAs |
| Lens coating type | Ultra-broadband multi-layer anti-reflection coating | Ultra-broadband multi-layer anti-reflection coating |
| Magnification (X) | 1x(Can be equipped with high magnification lens – 4x/6x/8x) | 1x(Can be equipped with high magnification lens – 4x/6x/8x) |
| Field of view (degrees, °) | 40 | 40 |
| Focal length (mm) | 25 | 25 |
| Vision adjustment range (diopter) (degrees, °) | +5/-5 | +5/-5 |
| Objective lens adjustment range (meters, m) | 0.25–∞ | 0.25–∞ |
| Volume (mm) | 115X178X58（expand）/115X105X85（fold） | 115X178X58（expand）/115X105X85（fold） |
| Weight (g) | 612 | 612 |
| Supply voltage (volts, v) | 2.0-4.2 | 2.0-4.2 |
| Battery Type | 1X CR123ALithium | 1X CR123ALithium |
| Continuous working time (hours, h) | 100(NO IR)40(IR) | 100(NO IR)40(IR) |
| Anti-glare protection function | Yes | Yes |
| Direction sensing automatic switch function | Yes | Yes |
| Automatic brightness function | Yes | Yes |
| Battery cover spring embedded design | Yes | Yes |
| Infrared auxiliary light | Yes | Yes |
| Infrared auxiliary amplifier | Yes | Yes |
| Built-in infrared indicator light | Yes | Yes |
| Infrared light wavelength (nm) | 850nm | 850nm |
| Install long-distance independent infrared lamp | Yes | Yes |
| Operating Temperature Range (°C) | -51/+49 | -51/+49 |
| Storage temperature range (°C) | -51/+85 | 51/+85 |
| Relative humidity | 5%-98% | 5%-98% |
| Trouble-free time | 10000H | 10000H |
| Waterproof and dustproof level | IP65 | IP65 |
