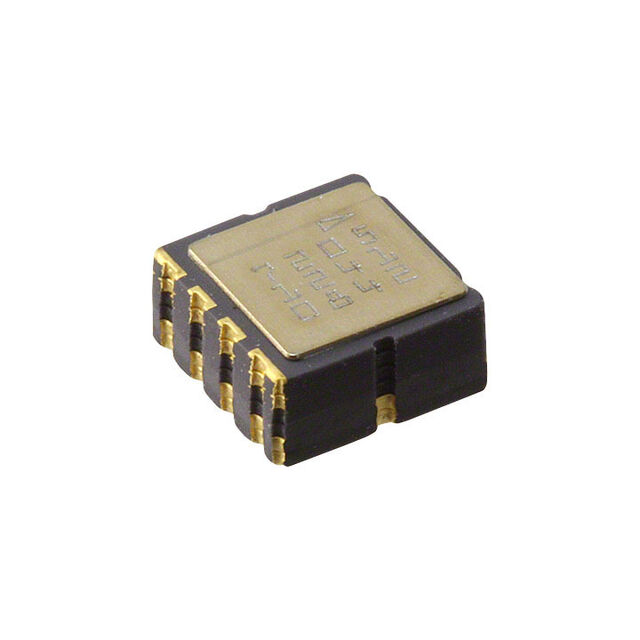

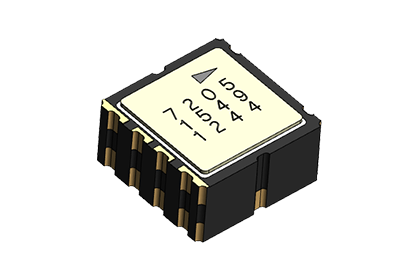

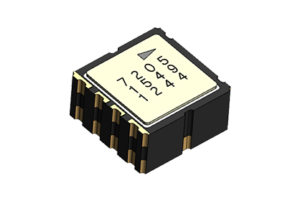

MEMSIC MXP7205VW IC

LCC package, 5x5x2.7mm, SPI interface, ±5g range, high reliability automotive grade 2-axis thermal accelerometer

• Dual axis accelerometer fabricated on a single CMOS IC

• Monolithic design with mixed mode signal processing

• Zero-g temperature stability better than ±30mg from –40℃ to 105℃

• Sensitivity temperature compensation better that ±3% from -40℃ to 105℃

• ±5g dynamic range, 800LSB/g sensitivity

• 29Hz bandwidth

• On Demand Self Test

• >50,000g shock survival rating

• 4.50V to 5.25V single supply operation

• Small surface mount package, 5.5mm x 5.5 mm x 2.7

• XZ or XY mounting

• RoHS compliant
