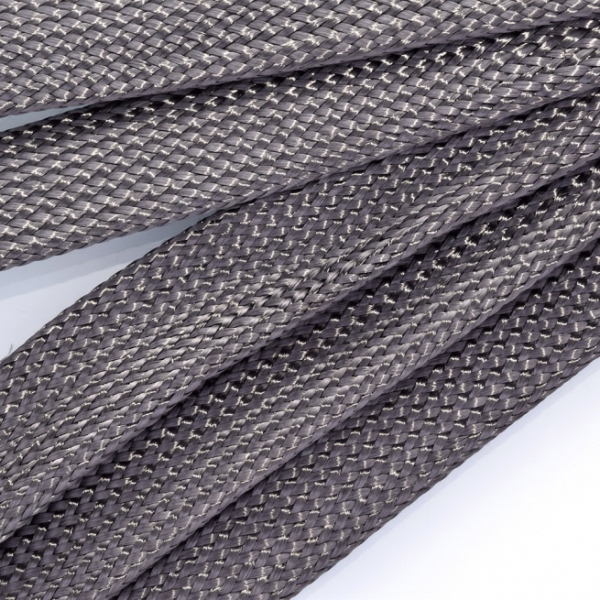

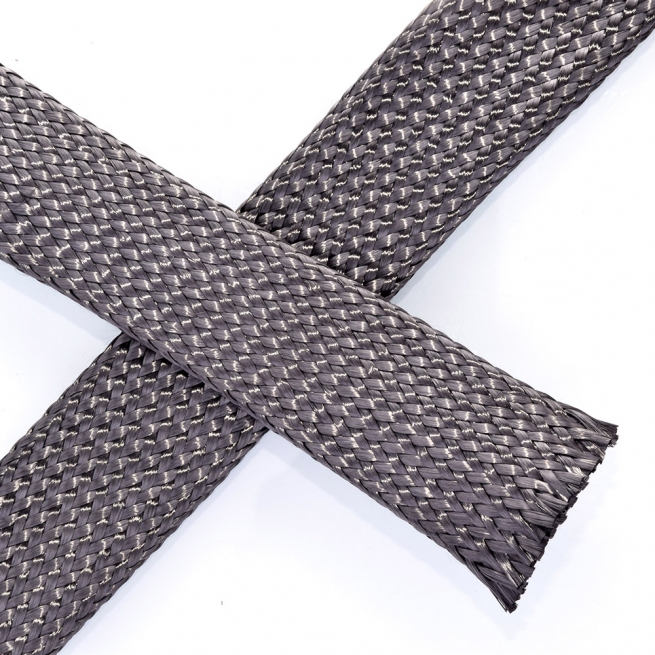

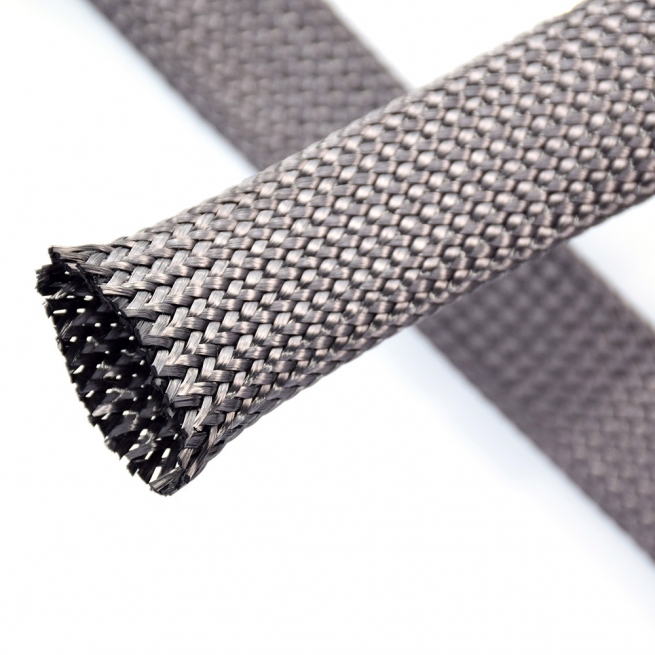

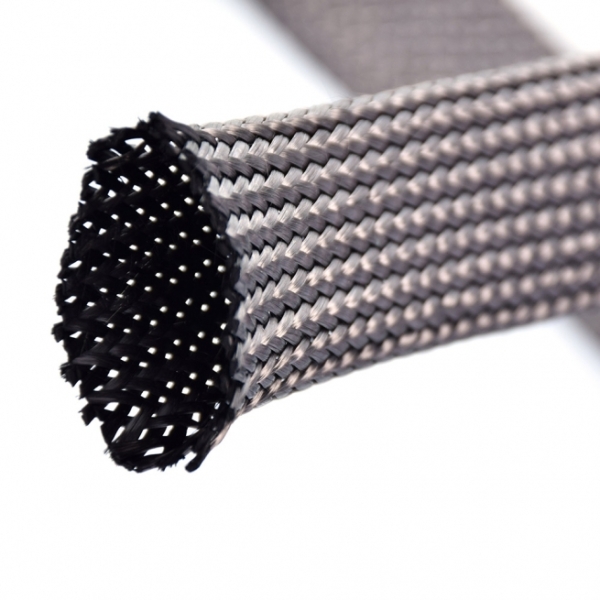

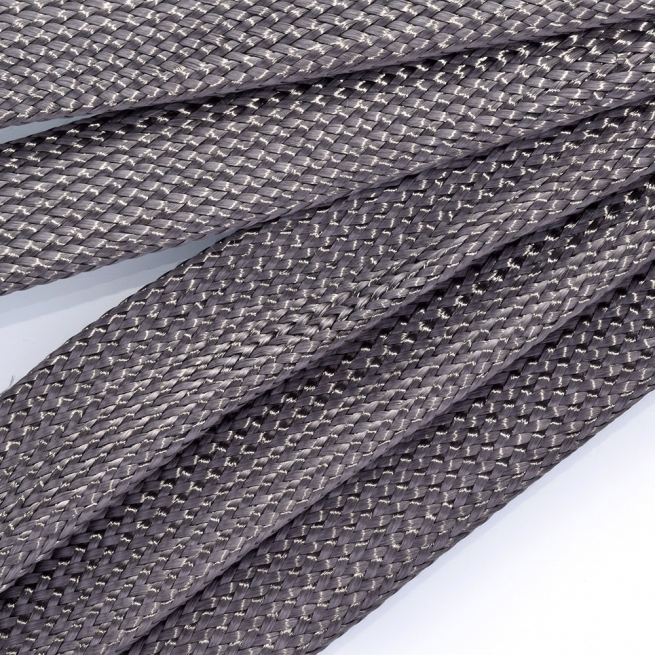

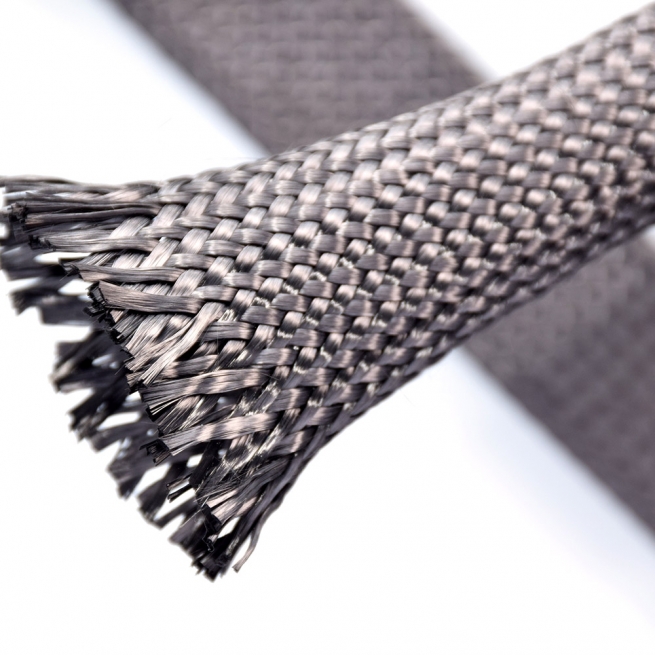

Product Description
Carbon fiber casing is made of high-quality carbon fiber yarn woven into carbon fiber is a new material with excellent mechanical properties, its specific gravity is not
To steel 1/4 carbon fiber resin composite material tensile strength are generally more than 3500Mpa, is 7-9 times the steel, has a strong

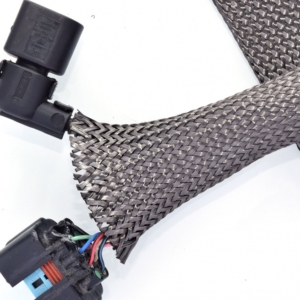

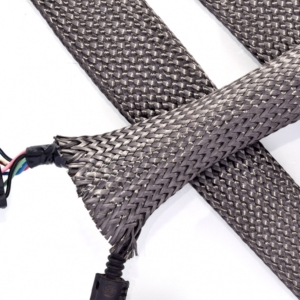

flexibility, high temperature resistance, light weight and other characteristics. The casing can be used to set some surface layer is not regular side of the wire, cable or
hose, and good stability, high torsional strength.
Product application
Carbon fiber sleeve is made of high quality carbon fiber yarn. Carbon fiber is a new material with excellent mechanical properties.
The specific gravity is less than 1/4 of the carbon fiber resin composite material, and the tensile strength is generally more than 3500Mpa. it has 9 times, super sang
toughness, high temperature resistance and light specific gravity. The shell can be used to cover irregular wires, cables or hoses on surfaces that
This provides excellent stability and high torsional strength.
Technical parameters
Material: Carbon Fiber
Working Temperature: -269℃~+650℃
Flame Retardant Grade: VW-1 Standard
Color: Black
Certification: RoHS
Cutting Tool: Scissors
Specification
| MODEL | FOLD DIAMETER(W) | EXTENDED RANGE | PACKAGE | |
| MIN.(I) | MAX.(O) | M/ROLL | ||
| 003 | 3.0 | 1.0 | 4.0 | 500 |
| 006 | 6.0 | 5.0 | 8.0 | 300 |
| 008 | 8.0 | 6.0 | 10.0 | 200 |
| 010 | 10.0 | 7.0 | 13.0 | 200 |
| 012 | 12.0 | 8.0 | 16.0 | 200 |
| 015 | 15.0 | 10.0 | 20.0 | 200 |
| 020 | 20.0 | 14.0 | 26.0 | 150 |
| 025 | 25.0 | 18.0 | 33.0 | 100 |
| 030 | 30.0 | 20.0 | 39.0 | 100 |
| 040 | 40.0 | 30.0 | 52.0 | 100 |
| 050 | 50.0 | 40.0 | 65.0 | 100 |
| LINEAR DENSITY(g/km) | 200 |
| DENSITY(g/cm³） | 1.79 |
| TENSILE STRENGTH(MPa) | 4254 |
| TENSILE STRENGTH Cv(%) | 2 |
| TENSILE ELASTIC MODULUS(GPa) | 214 |
| PERCENTAGE OF BREAKING ELONGATION | 2 |
| SIZING AGENT CONTENT(%) | 0.75 |
