- Binocular Monocular Gen2+Night Vision Goggles

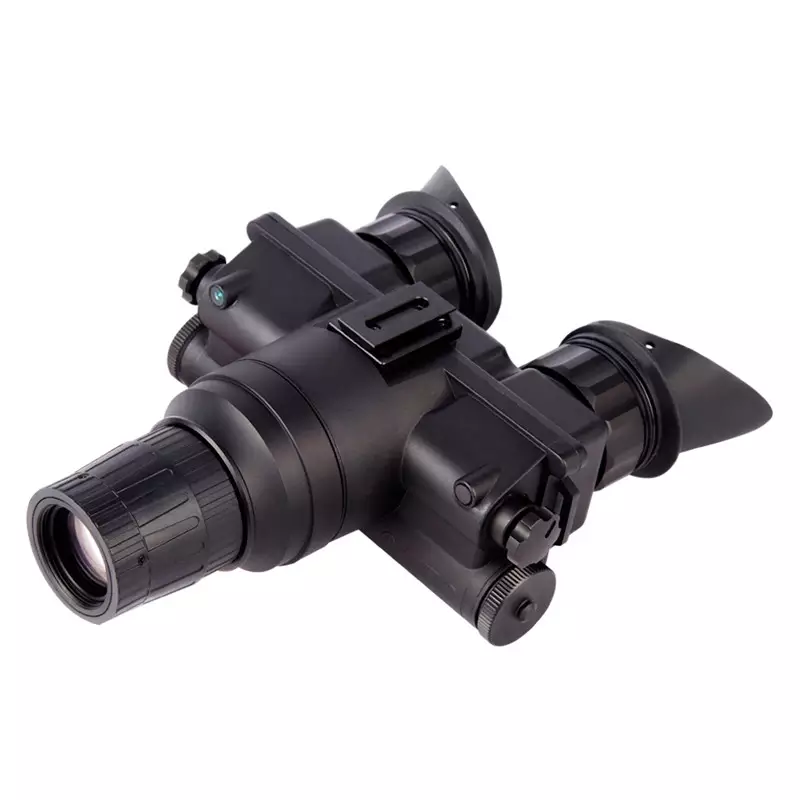

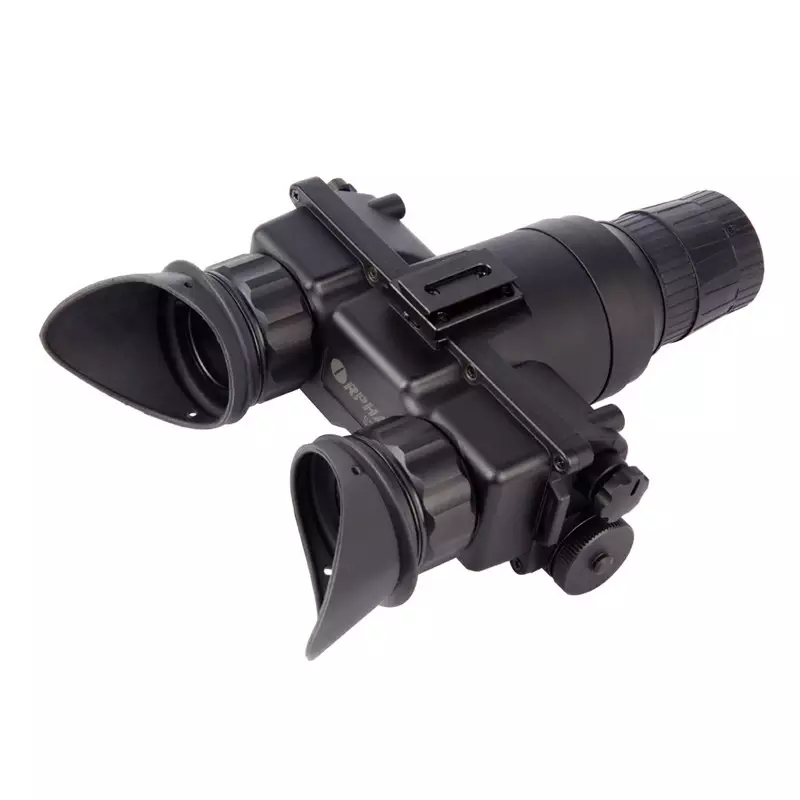

This night vision is headwear and night vision goggles. This Binocular Monocular Gen2+ Quasi Gen3 Night Vision Goggles is 1× magnification, with Intensifier tube level Gen 2+ or quasi Gen3, for military use.
MOQ=1000
Payment: TT/LC
Shipping Port: Guangzhou or any port in China
Lead Time: usually 15 working days
Product Dimensions: OEM weight
Color: OEM color or as pictures’ colors
★Optional 2nd generation + or quasi-3rd generation image enhancement tube

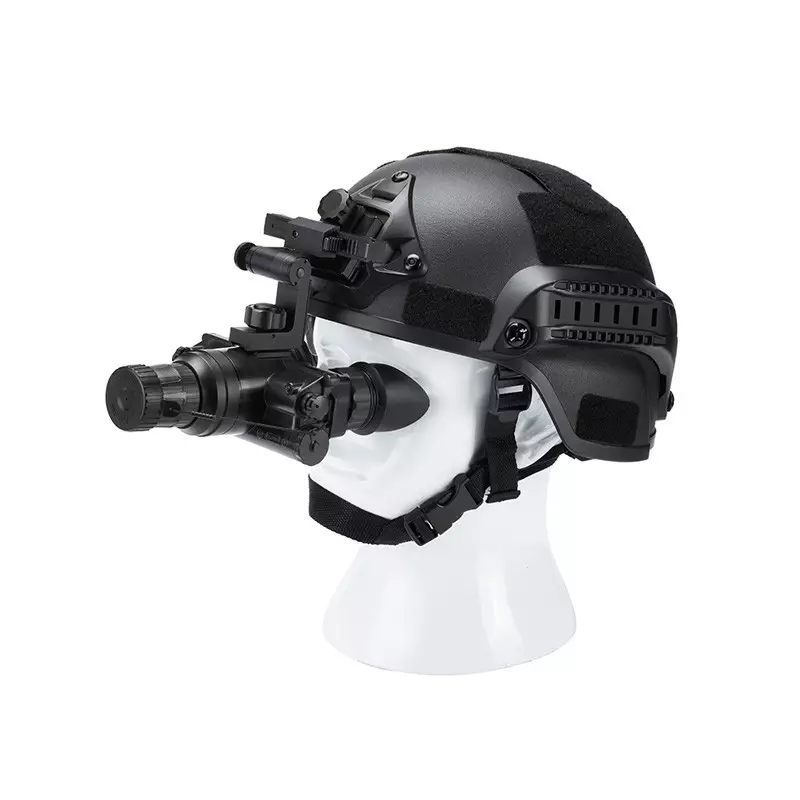

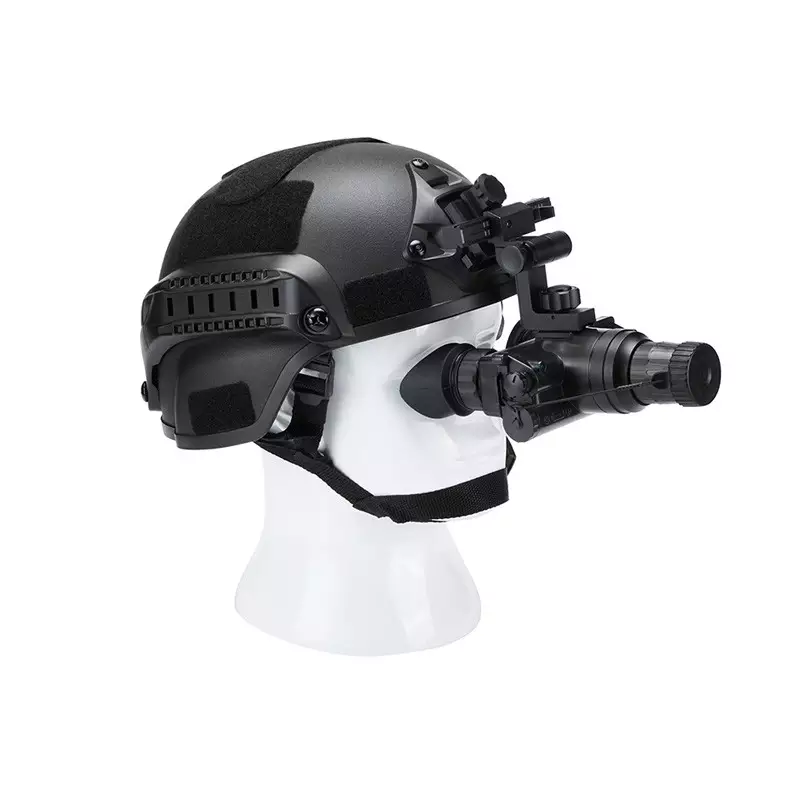

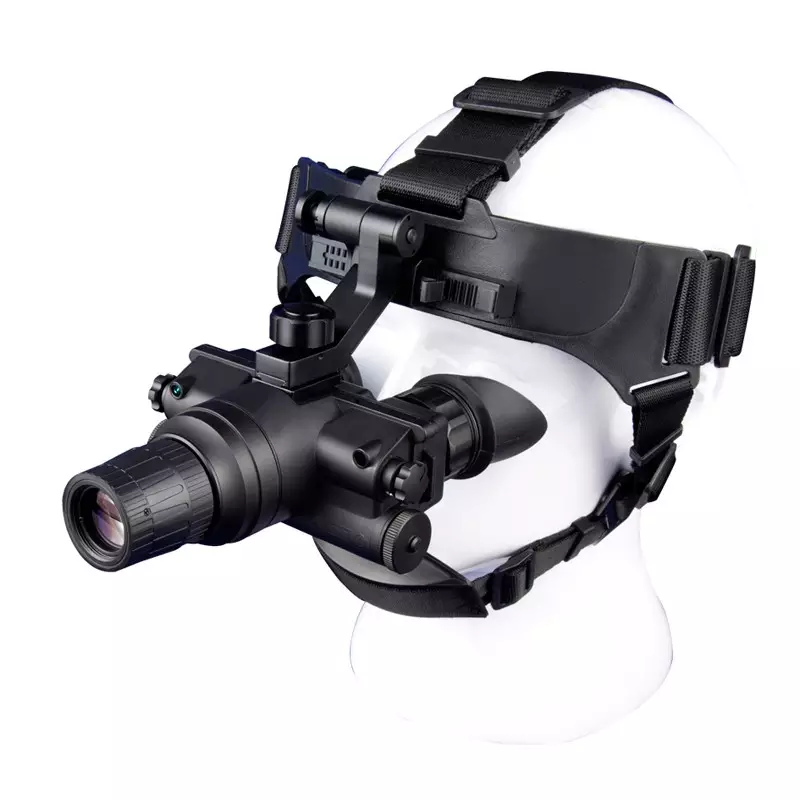

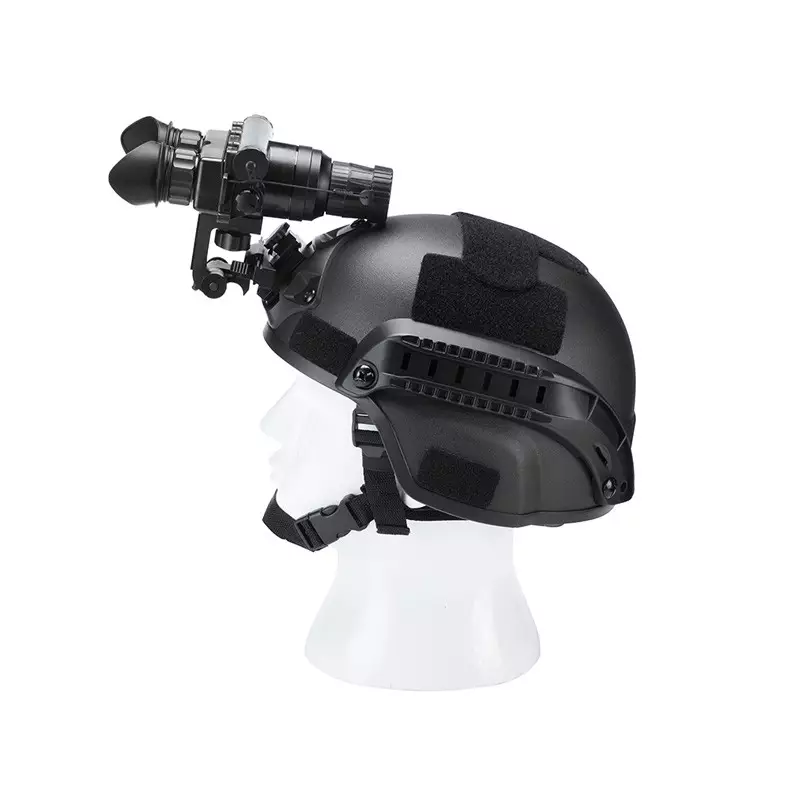

★Hands-free use when wearing a head/helmet, automatically power off after turning up the night vision device

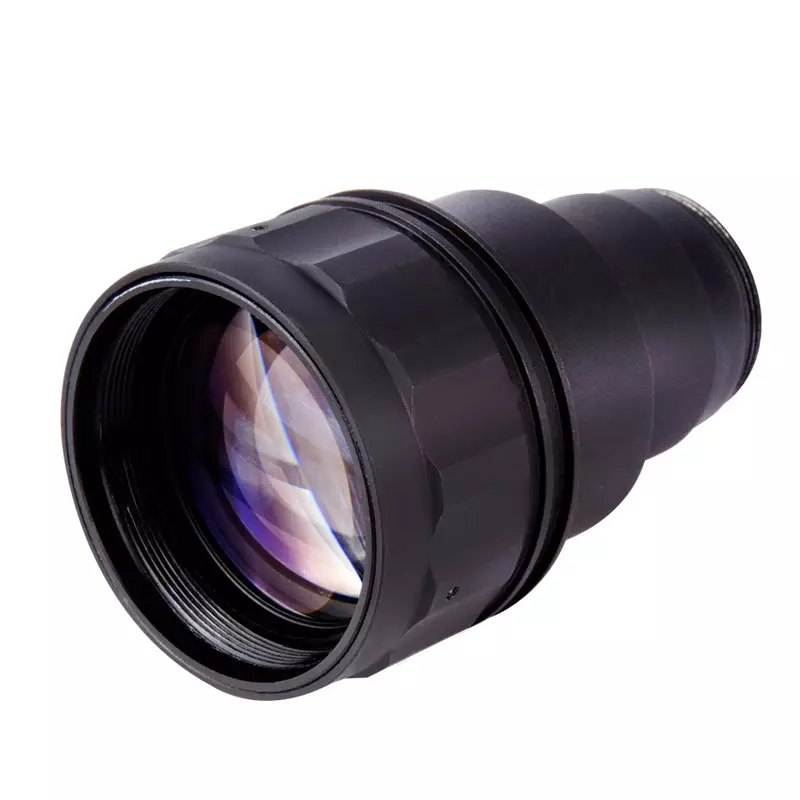

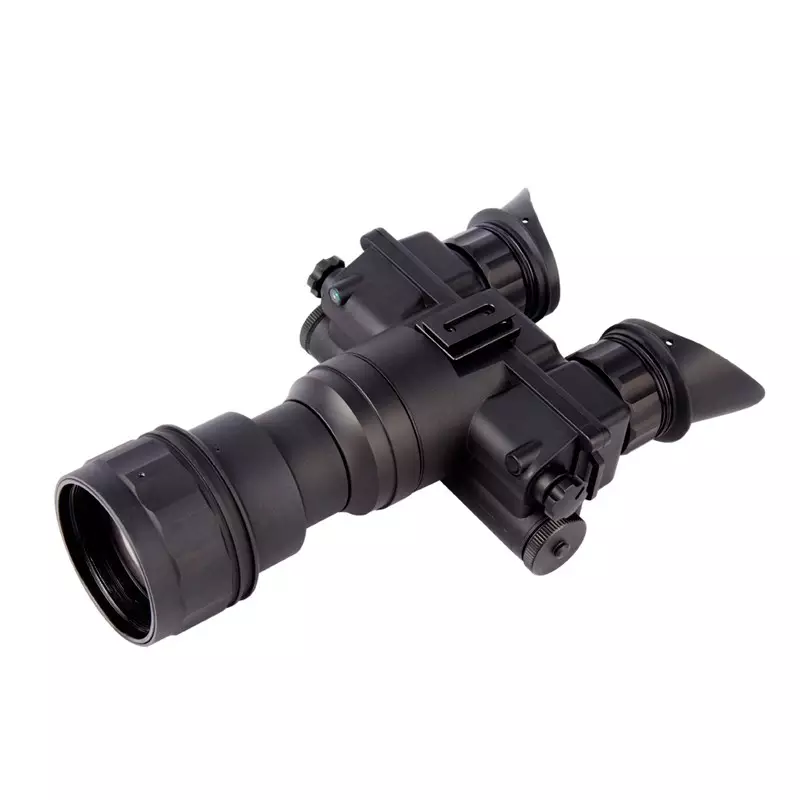

★The magnification can be changed by changing the objective lens, and a 4x multiplier or a 6x lens can be selected
★Optional separate infrared enhancer
★Automatic adjustment of image brightness and automatic shutdown of bright light (automatic shutdown or reduction of image brightness when the lighting condition exceeds the system default value)
★With IP67 waterproof and dustproof level (optional)
★Built-in infrared indicator light and low battery indicator (displayed in the eyepiece)
★Multi-layer coating standard: ultra-broadband multi-layer anti-reflection coating can suppress the broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain a good observation effect
★The night vision device has anti-glare and anti-glare functions
★Standby zero consumption: when the battery is not used for a long time, there will be no power loss when the battery is placed in the battery cartridge
★Meticulous workmanship, strong and durable
★Battery cover spring embedded
| Intensifier tube level | Gen2+ | Quasi Gen3 |
| Resolution(lp/mm) | 48-65 | 65-72 |
| Cathode side type | S25 | Gallium arsenide |
| SNR (dB) | 17-21 | 21-24 |
| Optical Sensitivity (µA/lumen) | 550-650 | 1500-1800 |
| Time between failures (hours) | 10000 | 10000 |
| Magnification | 1x | 1x |
| Field of view (degrees) | 40 | 40 |
| Diopter adjustment range (diopter) | +5/-5 | +5/-5 |
| Lens system | F1.2, 25.8mm | F1.2, 25.8mm |
| Objective adjustment range (m) | 0.25–∞ | 0.25–∞ |
| Volume (mm) | 150x121x58 | 150x121x58 |
| Weight (g) | 461(700 including the helmet） | 461(700 including the helmet） |
| Supply voltage (v) | 2.0-4.2 | 2.0-4.2 |
| Battery Type | 1X CR123A(1) or AA(2) | 1X CR123A(1) or AA(2) |
| Continuous working time (hours) | 80 (infrared not turned on) 40 (infrared on) | 80 (infrared not turned on) 40 (infrared on) |
| Operating Temperature Range (°C ) | -40/+60 | -40/+60 |
| Dustproof and waterproof grade | IP65 (upgradeable to IP67) | IP65 (upgradeable to IP67) |
COMPANY ADVANTAGES:
Established in 2010 and located in Guangzhou, we, Partner(Guangdong) SCM Co., Ltd. design and manufacture highly innovative and professional equipment for the world’s law enforcement and armed forces as well as outdoor enthusiasts.
With hundreds of professional factories covering full series of tactical and outdoor products, we could offer professional and quick solutions for raw/semi-finished material, OEM/ODM finished products and production line machines.
Over the last 13 years, we have established successful business relationship between customers from over 60 countries and regions. We believe that we could establish long-term business relationship and achieve mutual benefit through sincere cooperation between our two parties.
1. 24 hours follow up to your inquiry
2. OEM/ODM are available & Free custom logo print & Both heat transfer printing and laser engraving can be choiced
3. Fast delivery both for sample and bulk & timely update production state at any time you need during mass production
4. Totally safe/green raw material in high quality bought from the most original source suppliers.
5. Multi-choice for packing accessories, also can be customized.
6. We carry out strict quality control management from raw material to finished product.
7. Air shipping, Sea shipping, truck/train shipping are available.
8. Professional After-sales Service.
9. We have tens of multiple function production lines to fullfill large quantity order, production ability around 6000 pcs/day.
10. Our factories own Hundreds of thousand square meters factory area, enough to meet lage-area warehousing.
11. Best factory wholesale price and spare the most profit for you to make your business easier & better in the market.
