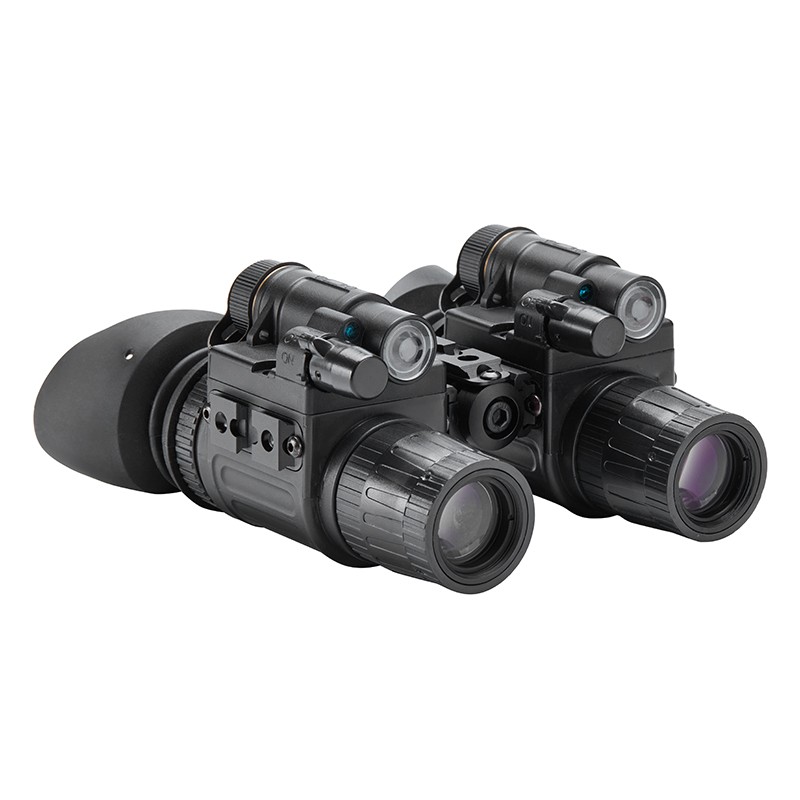

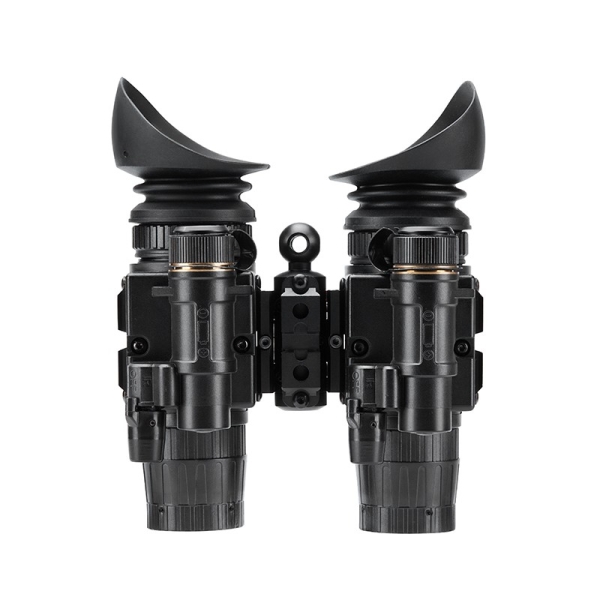

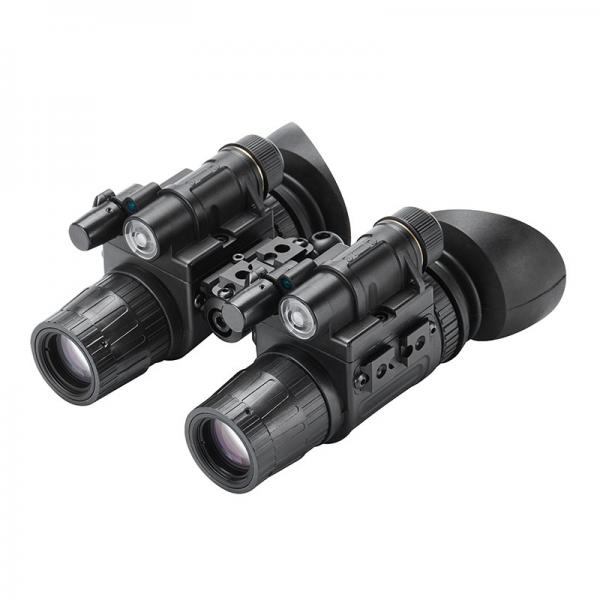

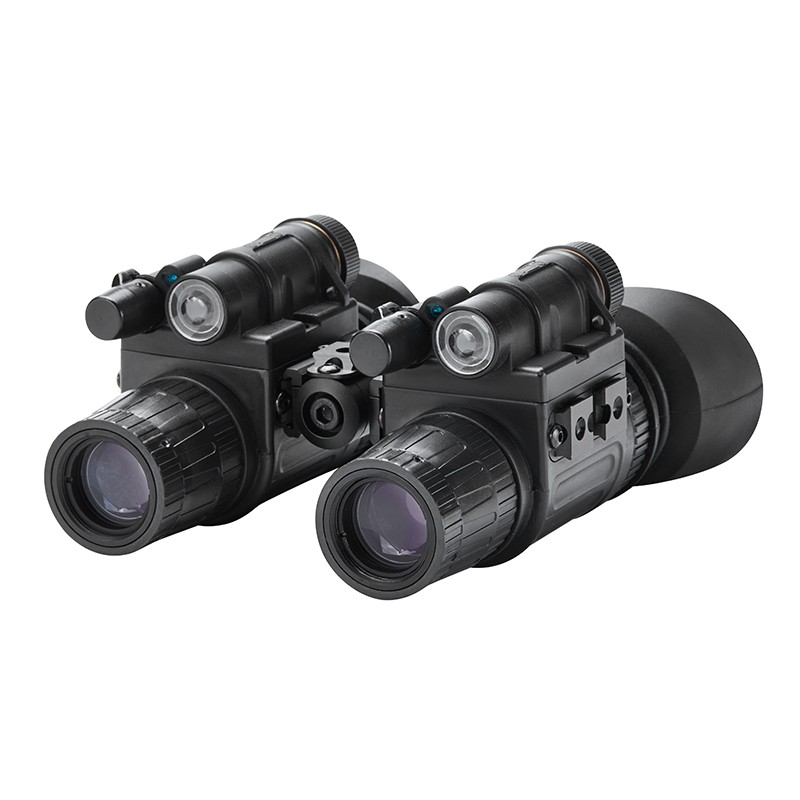

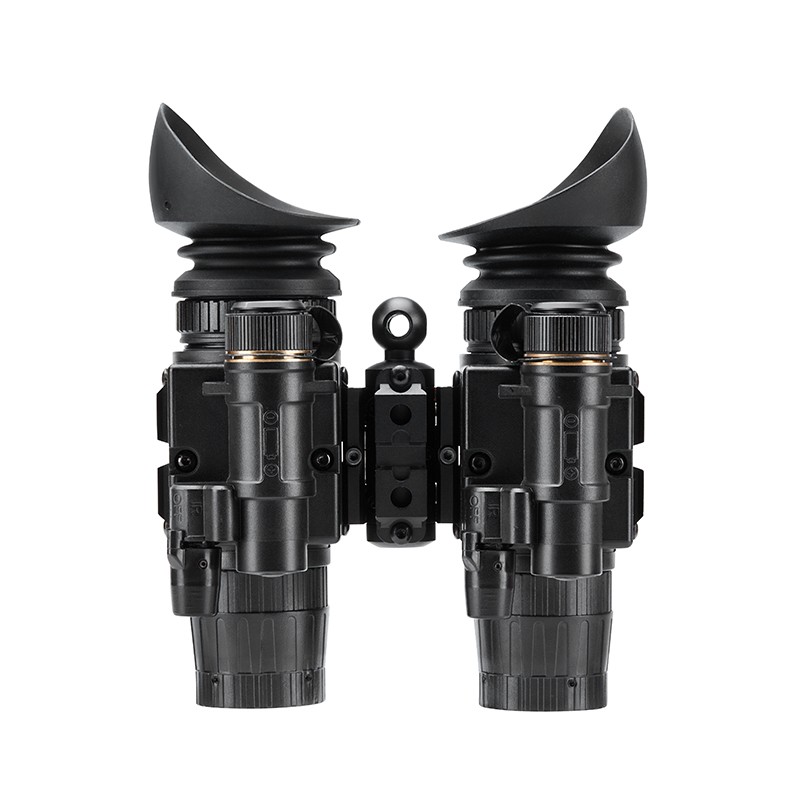

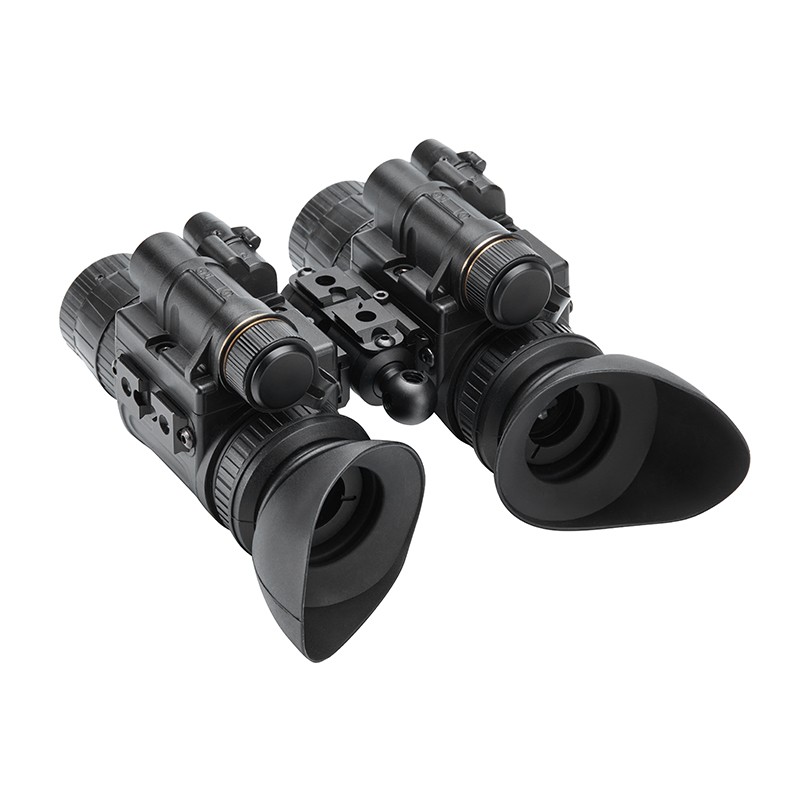

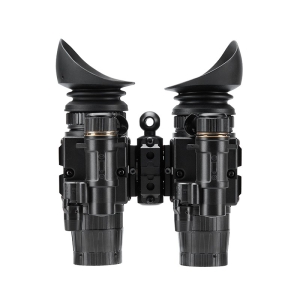

- Binocular Gen2+ IP67 Auto Night Vision

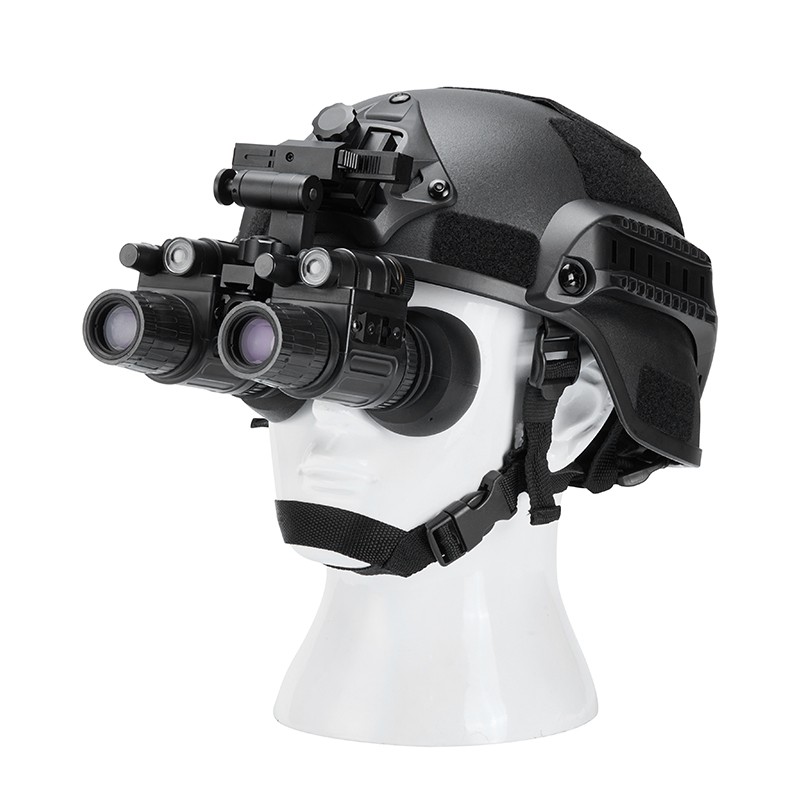

This night vision is headwear and night vision goggles. This Binocular Gen2+Night Vision Goggles is 1× magnification, with Intensifier tube level Gen 2+ or quasi Gen3, for military use.
MOQ=1000
Payment: TT/LC
Shipping Port: Guangzhou or any port in China
Lead Time: usually 15 working days
Product Dimensions: OEM weight
Color: OEM color or as pictures’ colors
★Waterproof and dustproof up to IP67 level, basic IP65
★Direction sensing automatic switch: When the device is not needed temporarily, press a button on the helmet to lift the device up to the top position and then let go, the device will automatically turn off. When you need to continue using it, press the same button to put the device down to the observation position, and the device will automatically resume working state.
★Replacing the objective lens can change the magnification, and 3x, 5x or 6x lenses can be selected
★Optional separate infrared enhancer
★Standby zero consumption: When not used for a long time, the battery will not lose power when placed in the battery tube
★Battery cover spring embedded: It can better contact with the battery and the spring is not easy to be damaged, and it is also easier to twist the battery cover.
★The helmet can be freely adjusted: The helmet device can be freely adjusted according to the head size of different users.
★Multi-layer coating standard: Ultra-wideband multi-layer anti-reflection coating can suppress broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain a good observation effect
★Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, which can ensure stable observation and protect eyesight.
★Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed flashing through the eyepiece.
| Style | Binocular | Binocular |
| IIT | Gen2+ | Quasi Gen3 |
| Resolution (line pairs, lp/mm) | 60-64 | 64-72 |
| Quality factor (FOM value) | 1400-1800 | 1600-2300 |
| Sensitivity (µA/lm) | 700-1000 | 850-1200 |
| Signal-to-Noise Ratio | 23-28 | 28-32 |
| Brightness gain (cd/㎡/lx) | 8000-12000 | 10000-20000 |
| Cathode surface type | S25 | GaAs |
| Lens coating type | Ultra-broadband multi-layer anti-reflection coating | Ultra-broadband multi-layer anti-reflection coating |
| Magnification (X) | 1x(Can be equipped with high magnification lens – 4x/6x/8x) | 1x(Can be equipped with high magnification lens – 4x/6x/8x) |
| Field of view (degrees, °) | 40 | 40 |
| Focal length (mm) | 25 | 25 |
| Vision adjustment range (diopter) (degrees, °) | +5/-5 | +5/-5 |
| Objective lens adjustment range (meters, m) | 0.25–∞ | 0.25–∞ |
| Volume (mm) | 110 x 87 x 68 | 110 x 87 x 68 |
| Weight (g) | 612 | 612 |
| Supply voltage (volts, v) | 2.0-4.2 | 2.0-4.2 |
| Battery Type | 1X CR123ALithium | 1X CR123ALithium |
| Continuous working time (hours, h) | 100(NO IR)40(IR) | 100(NO IR)40(IR) |
| Anti-glare protection function | Yes | Yes |
| Direction sensing automatic switch function | Yes | Yes |
| Automatic brightness function | Yes | Yes |
| Battery cover spring embedded design | Yes | Yes |
| Infrared auxiliary light | Yes | Yes |
| Infrared auxiliary amplifier | Yes | Yes |
| Built-in infrared indicator light | Yes | Yes |
| Infrared light wavelength (nm) | 850nm | 850nm |
| Install long-distance independent infrared lamp | Yes | Yes |
| Operating Temperature Range (°C) | -50/+60 | -50/+60 |
| Storage temperature range (°C) | -50/+70 | -50/+70 |
| Relative humidity | 5%-98% | 5%-98% |
| Trouble-free time | 10000H | 10000H |
| Waterproof and dustproof level | IP65 | IP65 |
| IP67 | IP67 |
