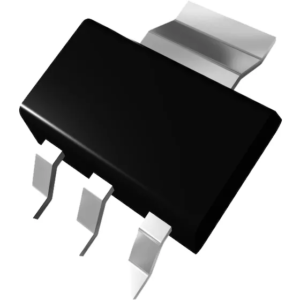

ST LD1117S33CTR IC

Categories: IC Chips SKU: LD1117S33CTR

ST LD1117S33CTR IC

Parameters

Operating Range	Commercial
Operating Temp Min Celsius	0.0
Operating Temp Max Celsius	125.0
ECCN US	EAR99
ECCN EU	NEC
Packing Type	Tape And Reel
RoHs compliant	Ecopack2
Grade	Industrial
Package Name	SOT-223

Description

The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (VREF= 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223,…
Read More

Key features

Key features
Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination Output current up to 800 mA Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V Adjustable version availability (V_REF= 1.25 V) Internal current and thermal limit Available in ± 1 % (at 25 °C) and 2 % in full temperature range Supply voltage rejection: 75 dB (typ.)
