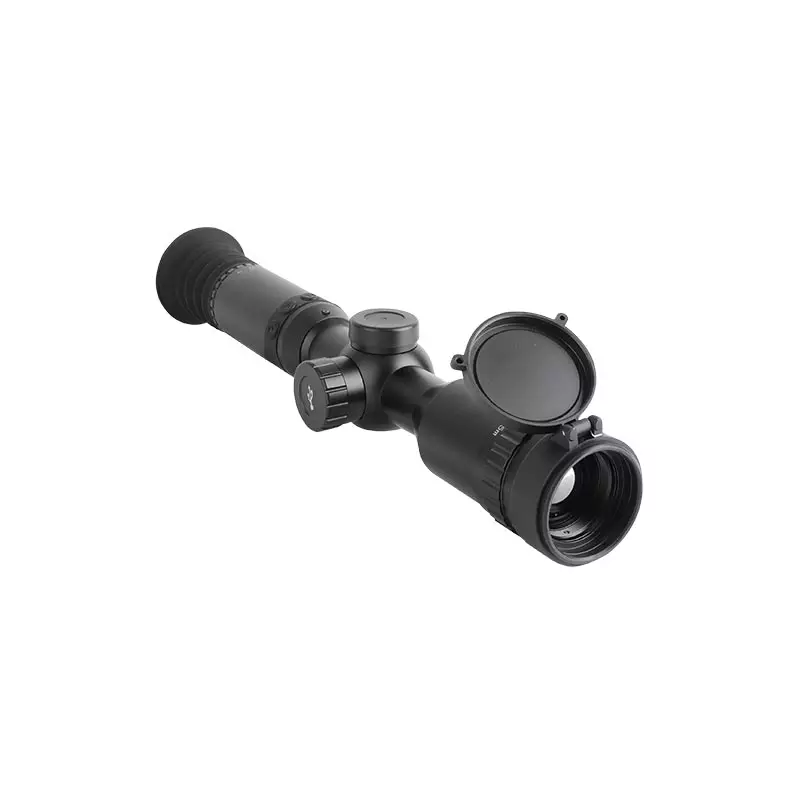

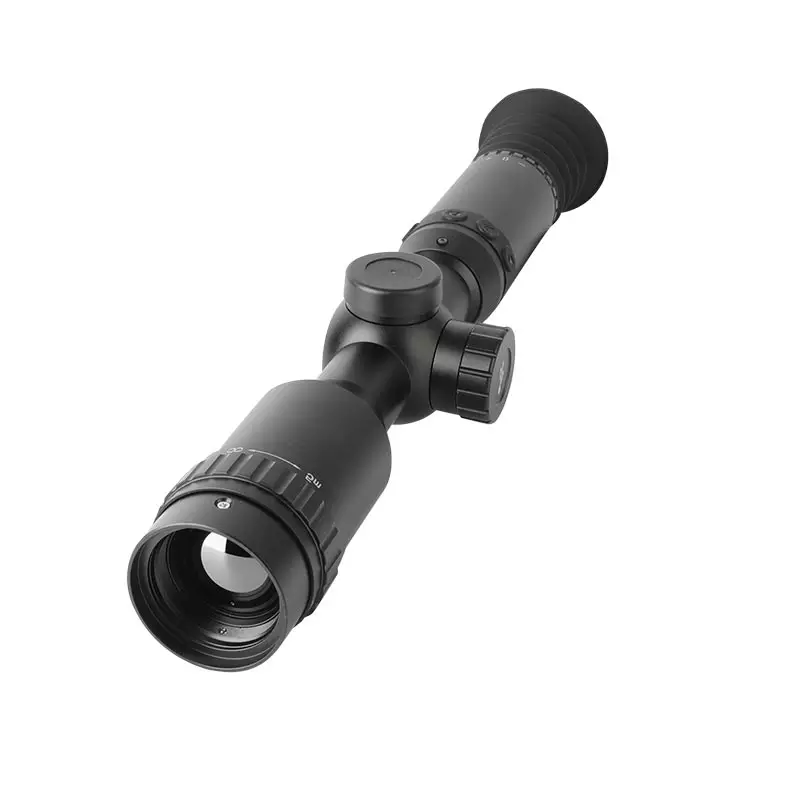

Three Lenses WIFI Video HD 1280*960 Diameter 30 Alloy Shell Thermal Imager

Categories: SKU: TRS06
TRS06 Series is a is a device that creates an image using infrared (IR) radiation, similar to a normal camera that forms an image using visible light.

Add To Quote
TRS06 Series is a is a device that creates an image using infrared (IR) radiation, similar to a normal camera that forms an image using visible light.
MOQ=1000
Payment: TT/LC
Shipping Port: Guangzhou or any port in China
Lead Time: usually 15 working days
Product Dimensions‏: OEM weight
Color: OEM color or as pictures’ colors

Ø Three lenses, 25MM,35MM and 50MM, can be selected to meet different customer needs;

Ø With image WIFI transmission and built-in video, photography functions;

Ø Hd 1280*960 resolution display;

Ø Alloy shell, not afraid of harsh environment;

Ø 30 pipe diameter, can be equipped with universal fixture bracket.

Model

KRM293D-325

KRM293D-335

KRM293D-350

Detector performance

Detector type

Uncooled focal plane

pixel

384×288

Pixel spacing

12μm

NETD

≤40mk

Image performance

Focal length

25mm

35mm

50mm

Field Angle(±5%)

10.6°*7.9°

7.5°*5.7°

5.3°*4.0°

Frame frequency

50HZ

focus

manual

Image display

display

Color Lcos 1280*960 resolution

Exit pupil distance

55mm

Eyepiece magnification

10X

Base magnification

x2.3

x3.25

x4.65

visibility

adjustable

Thermal image operation

Brightness/contrast

adjustable

Polarity change

Black fever/white fever

Electron doubling

x2,x3,x4

partition

yes

WIFI

yes

Image storage

built-in

32G

Storage mode

Video and photograph

Power supply

Battery type

Built-in lithium battery

Working time

> 5 hours

Environmental parameter

Impact resistance

800G

anti-vibration

2g,GB/T2423.10(IEC60068-2-6)

Electromagnetic compatibility

Comply with CE requirement

humidity

0~95%

Operating temperature

-20℃~+50℃

Storage temperature

-40℃~+70℃

Physical characteristics

Shell color

black

interface

30 pipe diameter, can be equipped with universal fixture bracket

Protection class

IPX6

dimension

330×76×74mm(Eye mask not included)

weight

<900g

interface

Power input

Type-C Interface (charging, data transmission)

Detection range

Human(1.8×0.5)m

1000m

1400m

1900m

Vehicle(2.3×2.3)m

1600m

2200m

3200m

Identification distance

Human(1.8×0.5)m

500m

700m

1000m

Vehicle(2.3×2.3)m

800m

1100m

1600m
