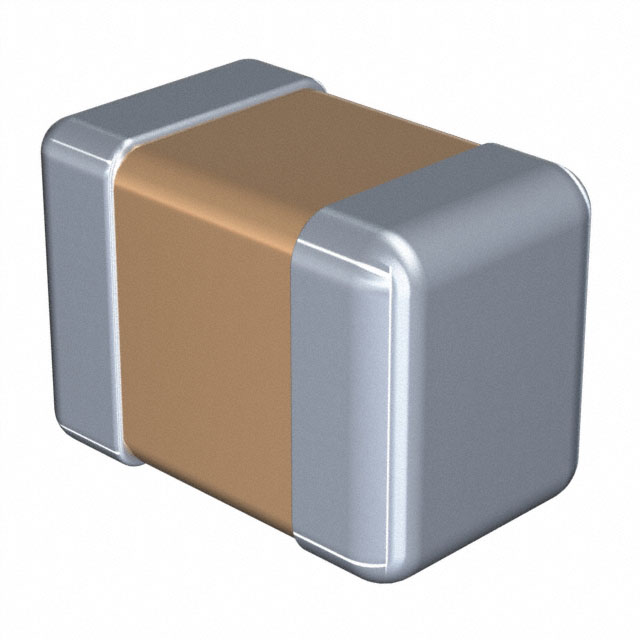

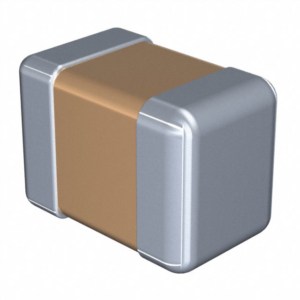

TDK C2012X7R1E475K125AB Capacitor

Categories: IC Chips SKU: C2012X7R1E475K125AB

TDK C2012X7R1E475K125AB Capacitor

Add to Wishlist

Size

Length(L)	2.00mm ±0.20mm
Width(W)	1.25mm ±0.20mm
Thickness(T)	1.25mm ±0.20mm
Terminal Width(B)	0.20mm Min.
Terminal Spacing(G)	0.50mm Min.
Recommended Land Pattern (PA)	1.00mm to 1.30mm(Flow Soldering) 0.90mm to 1.20mm(Reflow Soldering)
Recommended Land Pattern (PB)	1.00mm to 1.20mm(Flow Soldering) 0.70mm to 0.90mm(Reflow Soldering)
Recommended Land Pattern (PC)	0.80mm to 1.10mm(Flow Soldering) 0.90mm to 1.20mm(Reflow Soldering)

Electrical Characteristics

Capacitance	4.7μF ±10%
Rated Voltage	25VDC
Temperature Characteristic ?	X7R(±15%)
Dissipation Factor (Max.)	7.5%
Insulation Resistance (Min.)	106MΩ

Other

Operating Temp. Range	-55 to 125°C
Soldering Method	Wave (Flow) Reflow
AEC-Q200	NO
Packing	Embossed (Plastic)Taping [180mm Reel]
Package Quantity	2000pcs
