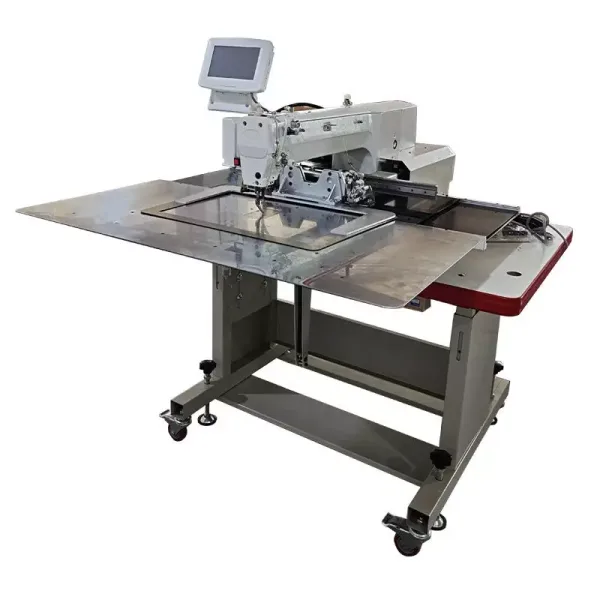

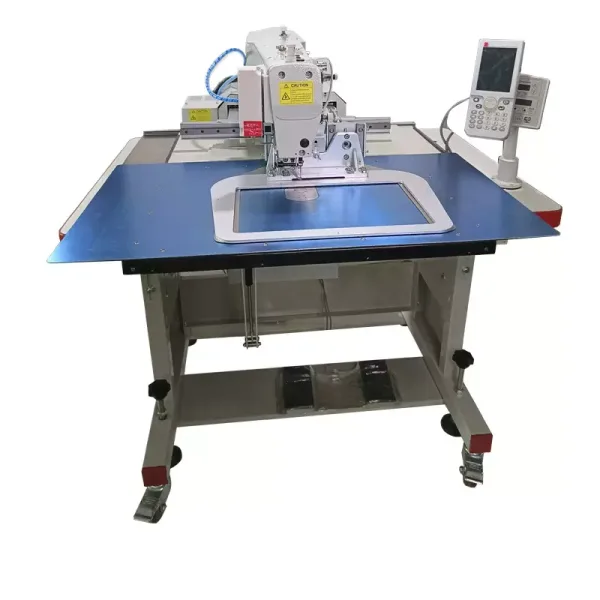

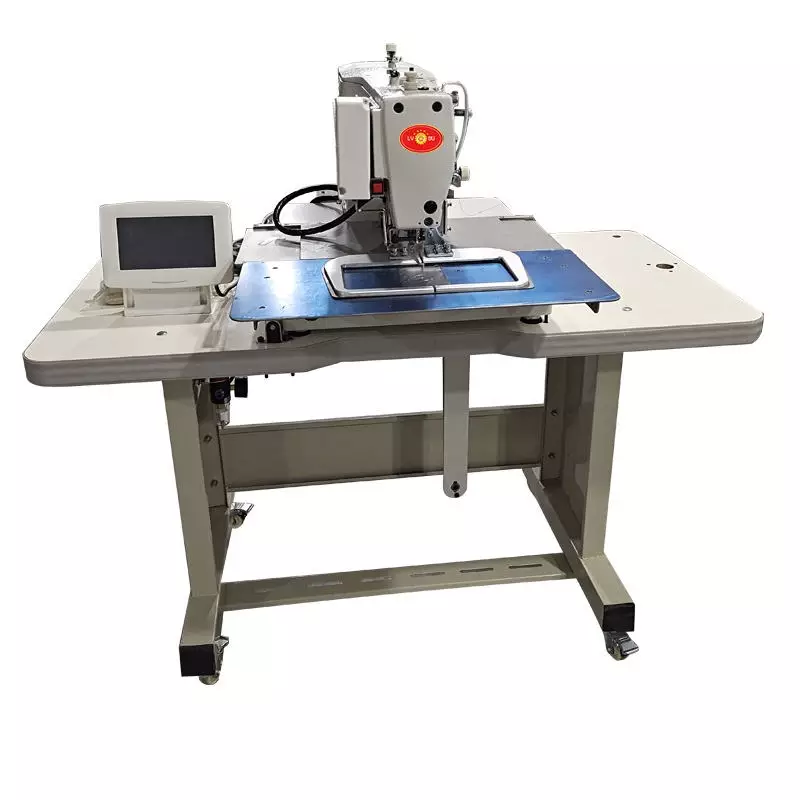

Shoes Lockstitch Industrial Automatic Sewing Machine

Categories: , SKU: SSM01
The Lockstitch Industrial Automatic Shoes Sewing Machine is a specialized machine for stitching shoes with precision and efficiency.

The Lockstitch Industrial Automatic Shoes Sewing Machine is a specialized machine for stitching shoes with precision and efficiency.
MOQ=1000
Payment: TT/LC
Shipping Port: Guangzhou or any port in China
Lead Time: usually 15 working days
Product Dimensions‏: OEM weight
Color: OEM color or as pictures’ colors

Name: Shoes Lockstitch Industrial Automatic Sewing Machine

Type:Industrial Sewing Machine ; Stitch Formation:Lock Stitch ; Mechanical Configuration:Flat-Bed ; Max. Sewing Thickness:10mm

Stitch Length:0.5-12.7mm ; Power:750W ; Overall Dimensions:120*115*125CM

Feed Mechanism:Automatic ; Warranty:1 Year ; Key Selling Points:Automatic ; Machinery Test Report:Provided

Video outgoing-inspection:Provided ; Warranty of core components:1 Year ; Core Components:PLC

Weight (KG):240 KG ; Operation:Electronic ; Features:Large Hook

Product Description

Programmable Electronic Pattern Sewing Machine

1. Programming any pattern (simple and easy to operate, 30 minutes to learn)

2. Automatic sewing (mold fixed sewing, stitch standard beautiful, raw hand 5 minutes to learn to sew, do not need skilled sewers)

3. Automatic thread cutting (automatic thread cutting after sewing, submit efficiency)

4. Automatic high and low pressure foot (the presser foot automatically lifts up and climbs when the material is thick, and automatically falls down when the material is thin)

Product Paramenters

Model:342G ; Sewing Area:X(Lateral) Direction Y(Longitudinal):300(mm) x 200(mm)

Max. Sewing Speed:2,700 sti/min ; Stitch Length:0.1~12.7mm

Maximum number of needles:20,000 pins (1 program)

Storage Pattern:Memory: 512 types (*1), CF card: 900 types ; Needles:DP×17

Presser foot lifting method:Pneumatic type ; Presser foot up volume:Maximum 30mm

Intermittent presser foot lift volume:22mm ; Intermittent presser foot travel:2 to 4.5mm, 4.5 to 10mm or 0 (3mm at the factory)

Mada:AC servo motor 550W ; Line Voltage:Single-phase 220V, 3-phase 220V/380V/400V 500VA

COMPANY ADVANTAGES:



Established in 2010 and located in Guangzhou, we, Partner(Guangdong) SCM Co., Ltd. design and manufacture highly innovative and professional equipment for the world’s law enforcement and armed forces as well as outdoor enthusiasts.

With hundreds of professional factories covering full series of tactical and outdoor products, we could offer professional and quick solutions for raw/semi-finished material, OEM/ODM finished products and production line machines.

Over the last 13 years, we have established successful business relationship between customers from over 60 countries and regions. We believe that we could establish long-term business relationship and achieve mutual benefit through sincere cooperation between our two parties.



1. 24 hours follow up to your inquiry

2. OEM/ODM are available & Free custom logo print & Both heat transfer printing and laser engraving can be choiced

3. Fast delivery both for sample and bulk & timely  update production state at any time you need during mass production

4. Totally safe/green raw material in high quality bought from the most original source suppliers.

5. Multi-choice for packing accessories, also can be customized.

6. We carry out strict quality control management from raw material to finished product.

7. Air shipping, Sea shipping, truck/train shipping are available.

8. Professional After-sales Service.

9. We have tens of multiple function production lines to fullfill large quantity order, production ability around 6000 pcs/day.

10. Our factories own Hundreds of thousand square meters factory area, enough to meet lage-area warehousing.

11. Best factory wholesale price and spare the most profit for you to make your business easier & better in the market.
